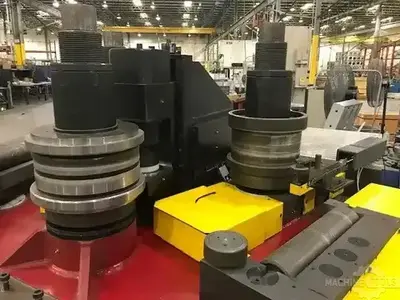

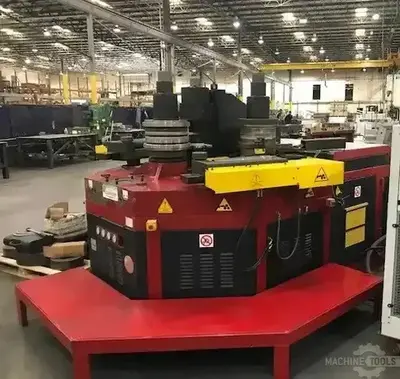

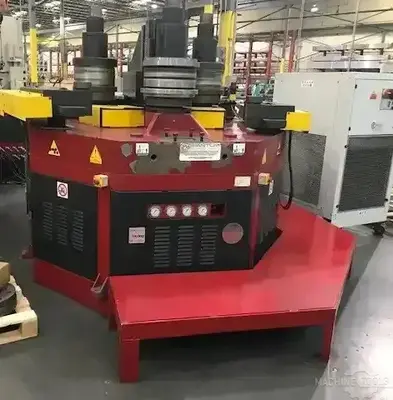

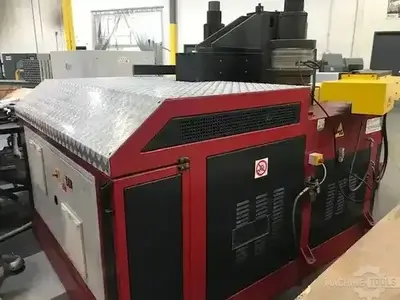

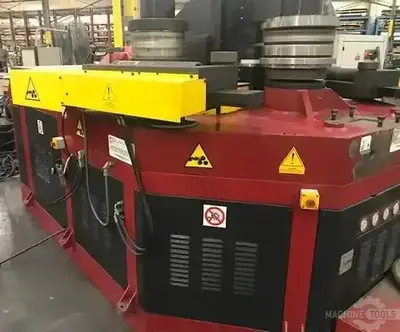

Tauring Alpha 200 CNC Hydraulic Angle Bending Roll
| Power | 22 kW | 29.5 hp |
Round Tube: 10.75" x 0.5"
Round Tube Min. Radius: 87"
Square Tube: 10" x 10" x .40"
Square Tube Min. Radius: 80"
Flat Bar (Hard Way): 10" x 2.3"
Flat Bar Min. Radius: 32"
Angle (Leg Out): 7.8" x 7.8" x 0.78"
Angle Min. Radius: 78"
H Beam: IPE 330 / Min. Radius: 75"
Driven Rolls: 3
Shaft Diameter: 19.29"
Standard Shaft Working Length: 15.75"
Shaft Revolutions Per Minute: 7.1 RPM
Main Motor: 24.1 hp
Electrical: 480V/3PH/60Hz

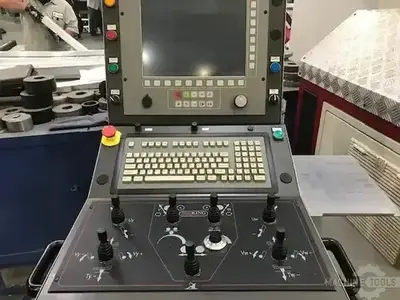

Alpha200CNCi Control
HE Device
Hydraulic Roll Adjustment
Universal Tool Set
