USED WELLSAW V20

USD $6,500.00
1 available
Overview
Manufacturer:
WELLSAW
Model:
V20
Stock #:
7625
Status:
For Sale
Description

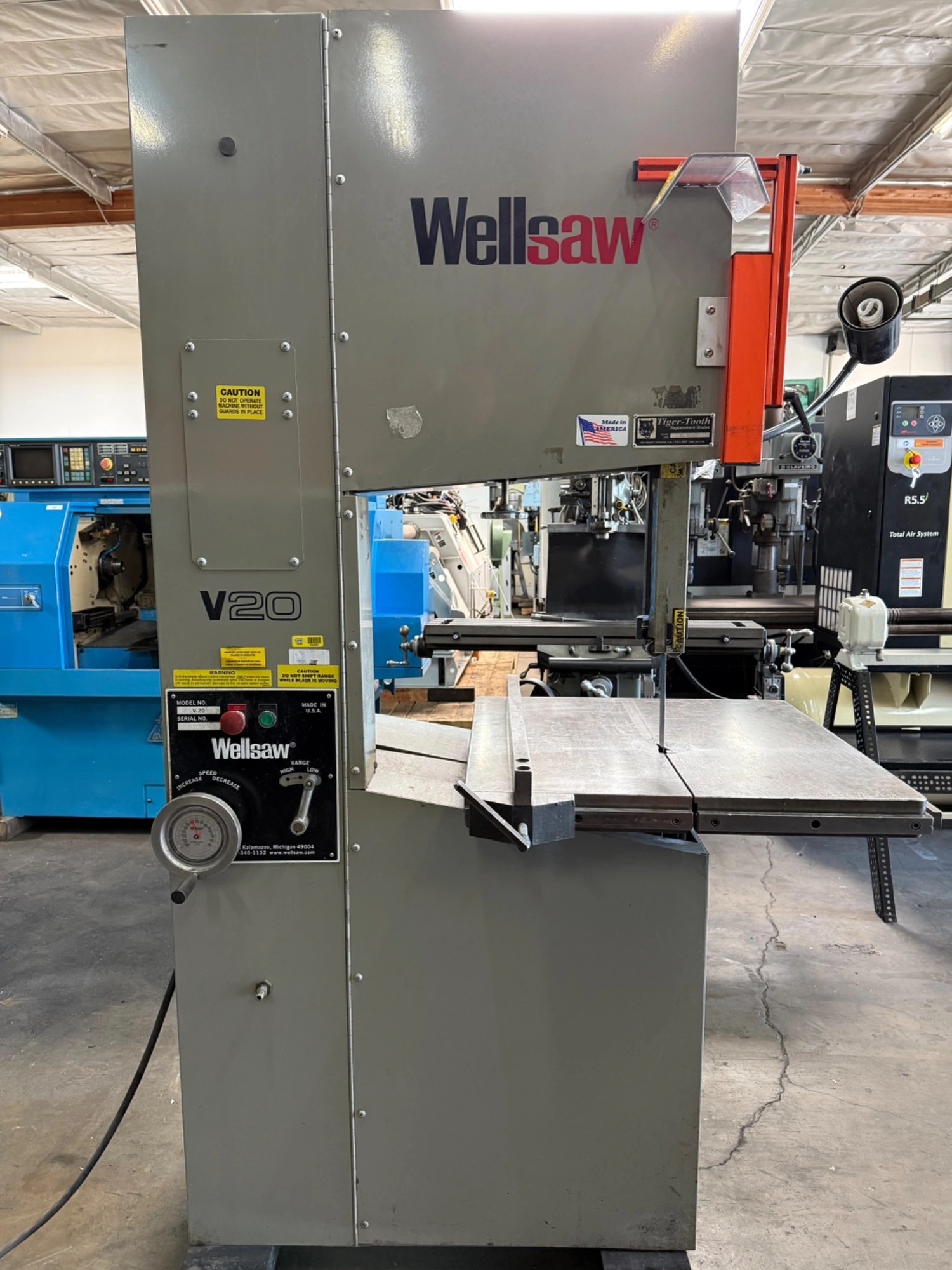

Wellsaw V20 Vertical Band Saw by WELLSAW, model V20, offers a 20" throat and 16" work height. Powered by 3 hp, with a 177" blade length, this used vertical band saw is ready to meet your cutting needs with precision.

Specifications
Throat20"508 mm
Work Height16"406.4 mm
Power3 hp2.2 kW
Blade Length177"4,495.8 mm

Wellsaw V20 Vertical Band Saw #7625 #1

SPECIFICATIONS:
Capacity:
Throat 20" Deep
Table to Guide: 16" High
Blade Size
Standard Width 3/16" through 3/4"
Optional Width 1/2" through 1"
Length: 14’-9"
Wheel Travel 3-1/2"
Band Wheels 21" Cast Aluminum with replaceable rubber tires
Blade Guides Six Sealed Roller Bearings w/ 90° Rotation Feature
Table Size 26" x 26" Cast Iron
Tilt 5° Inside and 45° Outside
Table Height 37-1/2"
Drive Motor
208/230/460 Volt Three Phase 3 HP
208/230 Volt Single Phase 2 HP
115 Volt Single Phase 1.5 HP
Blade Speed SFPM (Infinitely Variable)
Low Range 45-400
High Range 325-3000
Gear Transmission Two Speed Oil Bath
Chip Blower Valve and Regulator Uses Shop Air
Dimensions
Length: 48”
Width: 32”
Height: 83”
Shipping Weight 915 lbs.
