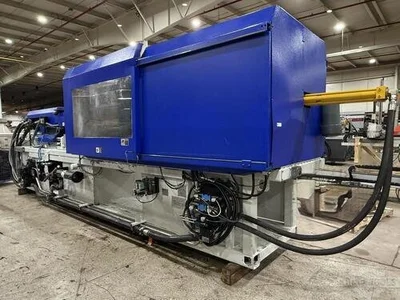

300 Ton 40 oz Shot Size Injection Molding Machine
| Tonnage | 300 T | 272.156 t |
| Shot Size | 40.3 oz | 1,142.5 g |
| Horz/Vert | Horz | Horz |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Capacity: 300 Ton
Shot Size: 40.3 oz
Tie Bar Spacing: 25" x 25"
Platen Size: 37" x 37"
Min Daylight: 8"
Max Daylight: 49"
Clamp Stroke: 24"
Clamp: Toggle
Horsepower: 50
Control: Pathfinder 5000
Approx Machine Weight: 28,200 lbs
Approx Dimensions (LxWxH): 26.1'L x 5.2'W x 7.8'H
Core Pull: Hydraulic Knockout
Under Power
