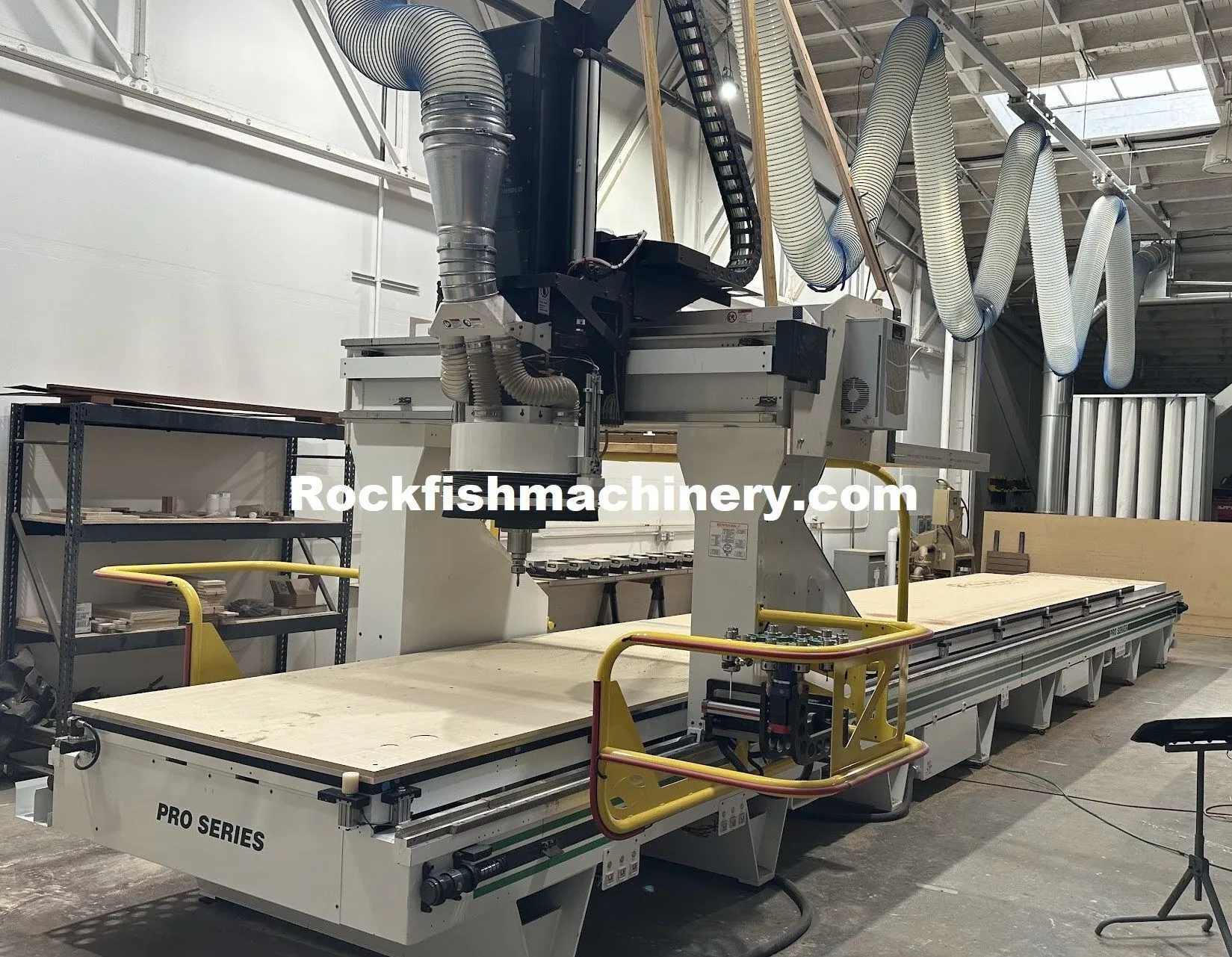

USED - -C.R ONSRUD Model F408G24 "5-Axis Pro Series" CNC Router
Year is 2022 but it was shipped and installed in 2023
Machine offered by Rockfish Machinery
FANUC 31i-B5 Machine Controller
5 Axis Long Nose Spindle w/ HSK-63F
24 HP Spindle with 24,000 RPM Double-Armature
12 Station Dynamic Automatic Rotary Tool Changer
X - Axis Travel: 408"
Y - Axis Travel: 60"
Z - Axis Travel: 28" Extended option
5 x 34 - Aluminum Vacuum Grid Table UPGRADE
Pneumatic Controlled Reference Pop-Up Perimeter Positioning
Renishaw TS27R Wired Length & Diameter Tool Setter
Removable Dust Hood - Integrated Dust Extraction hood
FANUC MPG Handheld Remote Jog Pendant
27kVA Isolation Transformer for either 460V or 230V nominal
| Power | 24 hp | 17.9 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| Taper | HSK-63F | HSK-63F |
| # Axis | 5 | 5 |
| X | 408" | 10,363 mm |
| Y | 60" | 1,524 mm |
| Z | 28" | 711.2 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
USED - -C.R ONSRUD Model F408G24 "5-Axis Pro Series" CNC Router
Year is 2022 but it was shipped and installed in 2023
Machine offered by Rockfish Machinery
FANUC 31i-B5 Machine Controller
5 Axis Long Nose Spindle w/ HSK-63F
24 HP Spindle with 24,000 RPM Double-Armature
12 Station Dynamic Automatic Rotary Tool Changer
X - Axis Travel: 408"
Y - Axis Travel: 60"
Z - Axis Travel: 28" Extended option
5 x 34 - Aluminum Vacuum Grid Table UPGRADE
Pneumatic Controlled Reference Pop-Up Perimeter Positioning
Renishaw TS27R Wired Length & Diameter Tool Setter
Removable Dust Hood - Integrated Dust Extraction hood
FANUC MPG Handheld Remote Jog Pendant
27kVA Isolation Transformer for either 460V or 230V nominal
Rockfish Machinery has financing options available
Machine is sold "as-is, where-is" with no warranty unless otherwise stated.
Locations of machine vary, contact George with - Rockfish Machinery
All Specifications given by “Rockfish Machinery” and options specified must be
verified by buyer prior to purchase. Buyer is Advised to inspect the machinery.
Buyer needs to verify all specifications and options for what they are buying.
Payment in full by wire or check, prior to removal, machine sold subject to prior sale.
All rigging, inspections, preparations and trucking buyer’s responsibility.
