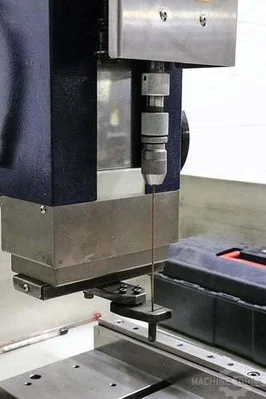

13.7” X 9.8” 30 Amp Hole Popper EDM with Harbor Precise Industries HE-250SA Oil Cooler Unit 55 - Gallon Oil Dielectric External Tank, Extra Filters and Machine Manual
| Work-W | 11.8" | 299.72 mm |
| Work-L | 23.6" | 599.44 mm |
| X | 13.7" | 347.98 mm |
| Y | 9.8" | 248.92 mm |
13.7” X 9.8” 30 Amp Hole Popper EDM with Harbor Precise Industries HE-250SA Oil Cooler Unit 55 - Gallon Oil Dielectric External Tank, Extra Filters and Machine ManualGENERAL SPECIFICATIONS Max. Amps: 30 AmpsTable Size: 23.6” X 11.8” Max. Workpiece Weight: 880 LbsX - Axis Travel: 13.7”Y - Axis Travel: 9.8”Z - Axis Servo Travel: 15.7”Backslide Travel: 7.8”Open Height Min. - Max.: 0.4” - 8.2”Electrode Diameters Available: 0.01” - 0.11”Max Height of Workpiece: 8.6”Machine Dimensions: 80” X 80” X 88” HMachine Weight: 1,860 LbsINCLUDES: Harbor Precise Industries HE-250SA Oil Cooler Unit 55 - Gallon Oil Dielectric External Tank, Extra Filters and Machine Manual
