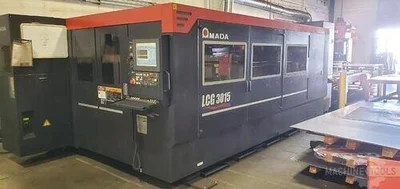

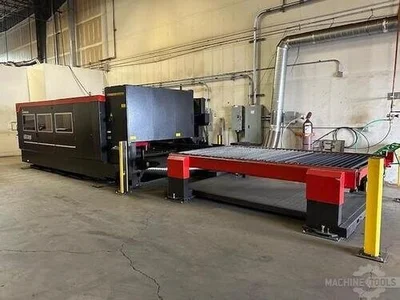

5’ X 10’ 3,500 Watt Laser Cutting System with AMNC-F Controller, Dust Collector, Dual Shuttle Table, Chiller and High-Pressure Assist Gas.
| Sheet-W | 61.024" | 1,550 mm |
| Wattage | 3.5 kW | 3.5 kw |
| X | 121" | 3,073.4 mm |
| Y | 61" | 1,549.4 mm |
| Z | 3.93" | 99.822 mm |
5’ X 10’ 3,500 Watt Laser Cutting System with AMNC-F Controller, Dust Collector, Dual Shuttle Table, Chiller and High-Pressure Assist Gas.GENERAL SPECIFICATIONS Resonator Wattage: 3,500 WattsMax Sheet Size: 5’ X 10’Max Sheet Weight: 2,028 LbsMild Steel Thickness: 0.787”Stainless Steel Thickness: 0.39”Aluminum Thickness: 0.31”X - Axis Travel: 121”Y - Axis Travel: 61”Z - Axis Travel: 3.93”Approx. Weight: 18,077 LbsINCLUDES: AMNC-F Controller, Dust Collector, Dual Shuttle Table, Chiller and High-Pressure Assist Gas.
