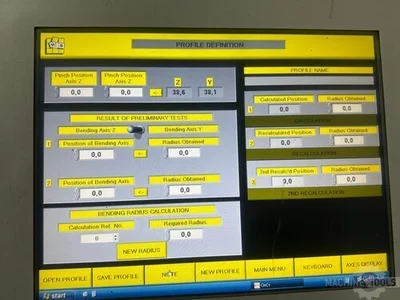

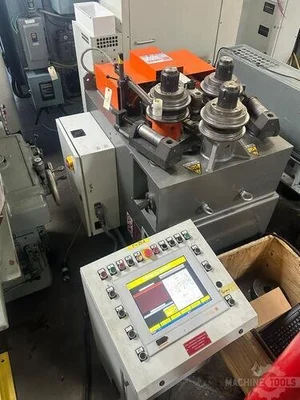

3” X 3” X ⅜” Hydraulic Angle Roll with CN3.1V CNC Control, Radis Input and Guide Rolls.
| Angle (L1) | 3" | 76.2 mm |
| Pipe Capacity | 2.5" | 63.5 mm |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Hyd/Mech | HYD | HYD |
| Operation (Horz, Vert, Horz/Vert) | HORZ/VERT | HORZ/VERT |
| Power | 6.6 hp | 4.9 kW |
3” X 3” X ⅜” Hydraulic Angle Roll with CN3.1V CNC Control, Radis Input and Guide Rolls.GENERAL SPECIFICATIONS Flat Bar On Edge: 3” X ½”Flat Bar on Flat: 5” X 1”Square Bar: 1-¾”Round Bar: 2”Angle Leg Out: 3” X ⅜”Angle Leg In: 2-½” X 9/32”Square Tube: 2-½” X 10 GaRound Tube: 3-½” X 14 GaRound Pipe Schedule 40: 2” - 2-½”T - Section Leg Out in Lateral: 3”C - Section Legs Out: 4-¾”I - Beams Easy Way: 4-½”Shaft Diameters: 2.76”Roll Diameters: 9.65”Power: 6.6 HPHigh Speed: 26 FPMOil Capacity: 8 Gallons Dimensions: 52” X 41” X 51”Weight: 3,500 LbsINCLUDES: CN3.1V CNC Control, Radis Input and Guide Rolls.
