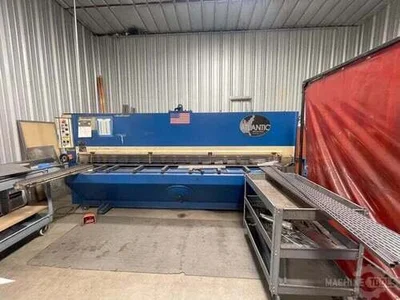

¼” X 10’ Hydraulic Shear with 15 HP Motor
| Max Thickness | 1" | 25.4 mm |
| Length of Blade | 120" | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 29" | 736.6 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 25 strokes/min. | 25 strokes/min. |
¼” X 10’ Hydraulic Shear with 15 HP MotorGENERAL SPECIFICATIONS Max Thickness: 0.25”Length of Blade: 10’Stainless Steel Capacity: 10 gaAngle Adjustments: 1 - 3°Number of Hold Downs: 18Stroke Speed: 10 - 25 SPMLength of Squaring Arm: 40”Back Gauge Range: 32”Working Height: 31”Motor: 15 HPDimensions: 157” X 77” X 63”Approx. Weight: 10,500 LbsINCLUDES: 15 HP Motor
