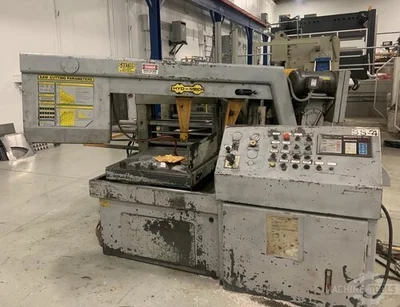

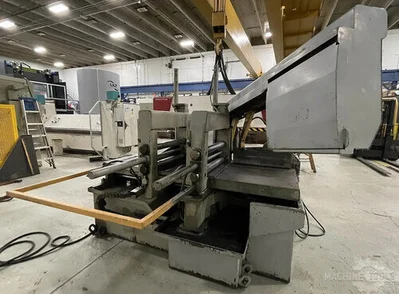

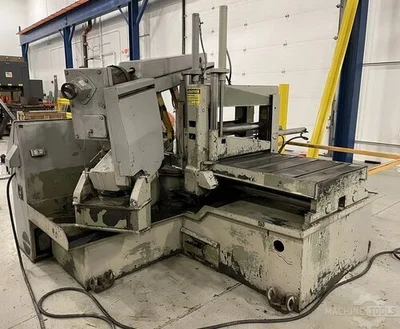

16” X 25” Horizontal Bandsaw with PLC Controller, Horizontal & Vertical Bundling Vices, Blade Brush, Chip Conveyor and Hydraulic Blade Tension.
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 25" | 635 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 222" | 5,638.8 mm |
16” X 25” Horizontal Bandsaw with PLC Controller, Horizontal & Vertical Bundling Vices, Blade Brush, Chip Conveyor and Hydraulic Blade Tension.GENERAL SPECIFICATIONS Max. Rectangular Capacity: 16” X 25”Capacity for Rounds: 16”Rounds @ 45°: 16”Rounds @ 30°: 11”Mitering Capacity: 90° - 30°Blade Size: 1-¼” X 18’ 6”Blade Speed: 50 - 350 SPMShuttle Stroke: 0 - 33” Multi IndexingWorkload: 8,000 LbsWeight: 7,400 LbsDimensions: 132” X 90” X 66”INCLUDES: PLC Controller, Horizontal & Vertical Bundling Vices, Blade Brush, Chip Conveyor and Hydraulic Blade Tension.
