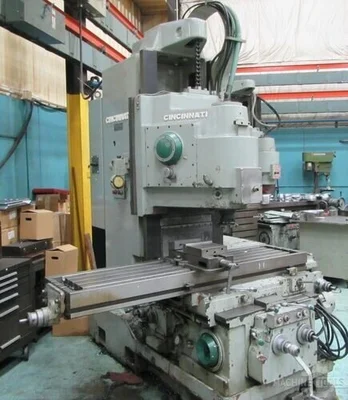

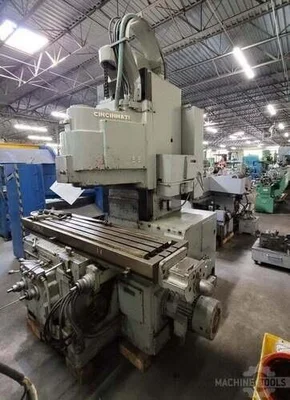

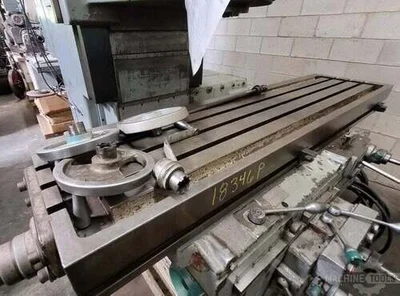

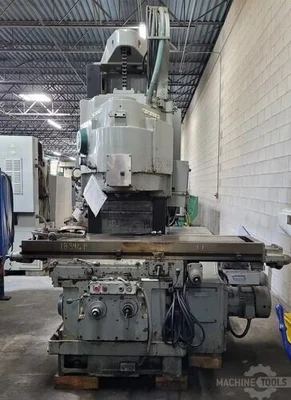

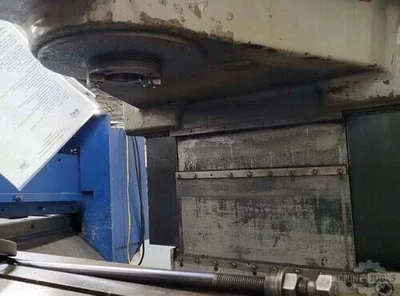

72” X 18” Vertical Mill with Front & Side Operations Controls, Rapid Traverse to all Axis, Table Climb Mill Feature, Automatic Table Cycle, Automatic & Continuous Cycles for Spindle Control, Power Feeds and Speed Selector.
Table-W | 18" | 457.2 mm |
Table-L | 72" | 1,828.8 mm |
Travel-Long | 34" | 863.6 mm |
Travel-Cross | 12" | 304.8 mm |
Power | 30 hp | 22.4 kW |
72” X 18” Vertical Mill with Front & Side Operations Controls, Rapid Traverse to all Axis, Table Climb Mill Feature, Automatic Table Cycle, Automatic & Continuous Cycles for Spindle Control, Power Feeds and Speed Selector.GENERAL SPECIFICATIONS Table Working Surface: 72” X 18” Table Longitudinal: 34”Table Cross: 12”Vertical Travel: 22”Spindle Taper: #50Spindle Speeds: 16 - 1600 RPMFeeds Longitudinal & Cross: ⅜ - 90 IPMVertical Feeds: 3/32 - 22-½”Power Rapid Longitudinal & Cross: 50 IPMPower Rapid Traverse Vertical: 37-½ IPMSpindle Drive: 30 HPFloor Space: 94” X 101” X 121”Weight: 21,400 Lbs INCLUDES: Front & Side Operations Controls, Rapid Traverse to all Axis, Table Climb Mill Feature, Automatic Table Cycle, Automatic & Continuous Cycles for Spindle Control, Power Feeds and Speed Selector.
