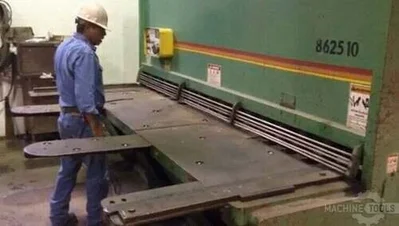

⅝” X 10’ Hydraulic Power Squaring Shear with 4’ Front R/H & L/H Squaring Arms, Ball Transfers on Table, Manual Quick Blade Gap Adjustment, Hydraulic Oil Cooler and 36” Swingup Backgauge.
| Max Thickness | 0.625" | 15.875 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 50 hp | 37.3 kW |
⅝” X 10’ Hydraulic Power Squaring Shear with 4’ Front R/H & L/H Squaring Arms, Ball Transfers on Table, Manual Quick Blade Gap Adjustment, Hydraulic Oil Cooler and 36” Swingup Backgauge.GENERAL SPECIFICATIONS Capacity: ⅝” X 10’Blade Size: 1-⅛” X 5” X 124”Number of Hydraulic Hold Downs: 16Hold Down Tonnage: 32 TonsFull Stroke Speed: 9 SPMShort Stroke Speed: 27 SPMMotor: 50 HPBackgauge: 48”Table Height: 34”Full Table Support Depth: 29”Approx. Machine Dims w/o Squaring Arm: 153” LR X 120” FBApprox. Machine Dims w/ Squaring Arm: 153” LR X 2047” FB X 112” HApprox. Machine Weight: 46,000 LbsINCLUDES: 4’ Front R/H & L/H Squaring Arms, Ball Transfers on Table, Manual Quick Blade Gap Adjustment, Hydraulic Oil Cooler and 36” Swingup Backguage.
