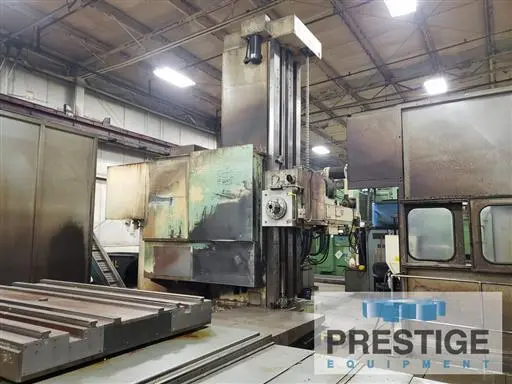

79” X 71” X 63” Horizontal Boring Mill with Fanuc 31iMB Control, CAT 50 Spindle Taper, 2 - Step Spindle Speed, 2 - Speed Gearbox, Linear Scales, Full “B” Axis Rotary Table w/ Scale, 300 PSI Coolant Thru Spindle, Chip Conveyor, Spindle and Gearbox Cooler
| Spindle Size | 5.1" | 129.54 mm |
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 70.8" | 1,798.3 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 55" | 1,397 mm |
| Table-L | 36" | 914.4 mm |
| Spindle Tvl. | 27.5" | 698.5 mm |

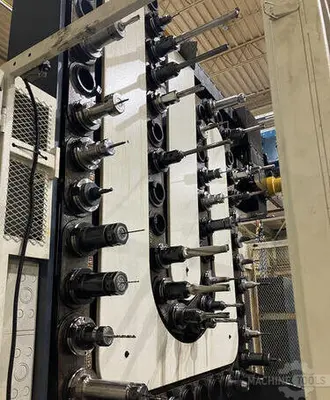

79” X 71” X 63” Horizontal Boring Mill with Fanuc 31iMB Control, CAT 50 Spindle Taper, 2 - Step Spindle Speed, 2 - Speed Gearbox, Linear Scales, Full “B” Axis Rotary Table w/ Scale, 300 PSI Coolant Thru Spindle, Chip Conveyor, Spindle and Gearbox CoolerGENERAL SPECIFICATIONS Spindle Size: 4.33”X - Horizontal Travel of Table: 78.7”Y - Vert Travel of Head: 70.87”Power: 35 HPSpeed: 3,000 RPMTable Width: 62.99”Table Length: 55.1”Spindle Travel: 21.65”X - Axis Travel: 79”Y - Axis Travel: 71”Z - Axis Travel: 63”W - Axis Travel: 21.7”Spindle Bar: 4.33”Table Size: 55” X 63”Max Workpiece Load: 26,400 LbsSpindle HP: 35ATC Capacity: 60Weight: 60,000 LbsINCLUDES: Fanuc 31iMB Control, CAT 50 Spindle Taper, 2 - Step Spindle Speed, 2 - Speed Gearbox, Linear Scales, Full “B” Axis Rotary Table w/ Scale, 300 PSI Coolant Thru Spindle, Chip Conveyor, Spindle and Gearbox Cooler
