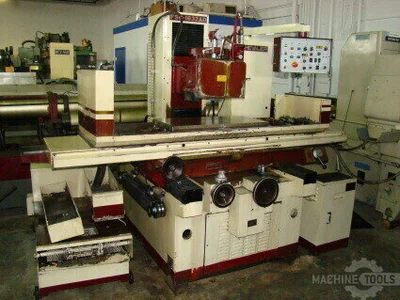

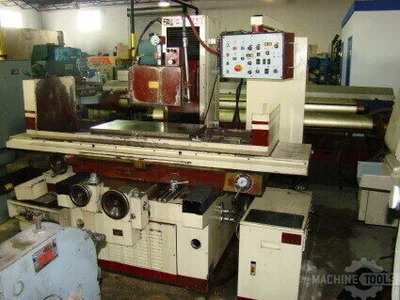

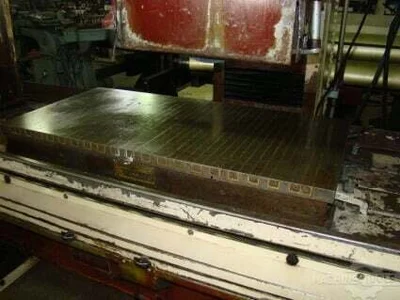

32” X 16” 3 - Axis Automatic Surface Grinder with Kanetsu Electro - Magnetic Chuck and Control, Coolant System with Paper Filter and Hydraulic Over the Wheel Dresser
| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
32” X 16” 3 - Axis Automatic Surface Grinder with Kanetsu Electro - Magnetic Chuck and Control, Coolant System with Paper Filter and Hydraulic Over the Wheel DresserGENERAL SPECIFICATIONS Longitudinal Table Travel: 32”Crossfeed Table Travel: 16”Table Size: 15-¾” X 31-½”Height W/O Chuck: 24-⅜” Wheel Speed: 1,750 RPMGrinding Wheel Dimensions: 14” X 2” X 5”Spindle Motor: 5 HPTable Speed: 16 - 82 FPM (Infinitely Variable)Automatic Transverse Increment: ⅛” - 2”Electrics: 220 / 440 / 3 / 60Approx. Weight: 6,400 LbsINCLUDES: Kanetsu Electro - Magnetic Chuck and Control, Coolant System with Paper Filter and Hydraulic Over the Wheel Dresser
