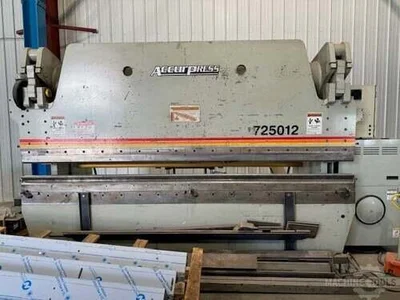

250 Ton X 12’ Hydraulic Press Brake with ETS CNC Control, 2 - Axis CNC Backgauge (X & Y), Manual R & Z, 4 - Way Bottom Die, Top Die and Pedestal.
| Tonnage | 250 T | 226.796 t |
| Type | HYD | HYD |
| Overall Length | 12' | 3.7 m |
| Between Housings | 124" | 3.1 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 1 | 1 |
250 Ton X 12’ Hydraulic Press Brake with ETS CNC Control, 2 - Axis CNC Backgauge (X & Y), Manual R & Z, 4 - Way Bottom Die, Top Die and Pedestal.GENERAL SPECIFICATIONS Capacity: 250 TonsOverall Length of Bed & Ram: 12’Distance Between Housings: 124”Stroke: 8”Throat Depth: 10”Open Height: 16”Closed Height: 8”Fast Return Speed: 19 IPMFast Return Speed: 140 IPMApprox. Cycles Per Minute: 11 - 15 Back Gauge Range: 24”Approx. Shipping Weight: 30,000 LbsApprox. Shipping Dimensions: 168” X 60” X 96” HINCLUDES: ETS CNC Control, 2 - Axis CNC Backgauge (X & Y), Manual R & Z, 4 - Way Bottom Die, Top Die and Pedestal.
