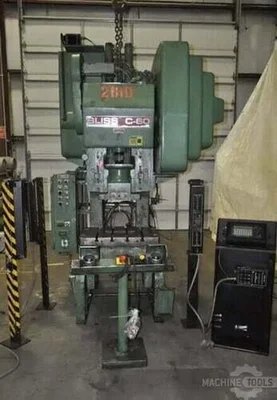

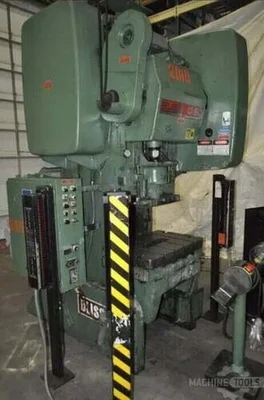

60 Ton Punch Press with Dual Palm Button Control, Back Geared, Air Clutch, Air Brake and Air Counterbalance.
| Tonnage | 60 T | 54.431 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 14" | 355.6 mm |
| Bed W | 21" | 533.4 mm |
| Bed L | 32" | 812.8 mm |
| SPM | 100 strokes/min. | 100 strokes/min. |
| Air Clutch (Yes/No) | air | air |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
GENERAL SPECIFICATIONS Tonnage: 60 TonsStroke: 4”Shut Height: 14”Ram Adjustment: 3”Bed Size: 32” X 21”Ram Size: 17” X 12”Stroke Speed: 90 SPMCrank: SingleMotor: 10HP 230/460/3/60Dimensions: 68” X 84” 116”HINCLUDES: Dual Palm Button Control, Back Geared, Air Clutch, Air Brake and Air Counterbalance.
