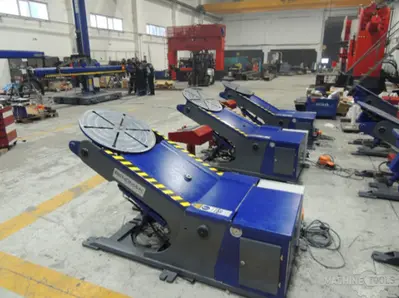

2,200Lbs Capacity Welding Positioner with T-Grooves, Adjustable Rotating Speed, Mechanical Angle Indicator, Welding - Grounding Mechanism, Height Adjustment Capability and Digital Speed Indicator
2,200Lbs Capacity Welding Positioner with T-Grooves, Adjustable Rotating Speed, Mechanical Angle Indicator, Welding - Grounding Mechanism, Height Adjustment Capability and Digital Speed IndicatorGENERAL SPECIFICATIONS Carrying Capacity: 2,200 LbsMax Frontal Loading Center: 5.9” Max Side Loading Center: 5.9”Max Table Tilting: 0 - 115°Rotation Motor: 0.74 HPHydraulic Unit Motor: 1.5 HPTable Rotation Speed Min / Max: 0.1 - 0.9 RPMTable Diameter: 35.4”T - Slots (Number - Angle): 6 - 60Overall Length: 94.5” Min. Horizontal Table Height: 36.6”Max. Horizontal Table Height: 65”Height of Horizontal Rotation: 28.3”Width of Machine: 35.4”INCLUDES: T-Grooves, Adjustable Rotating Speed, Mechanical Angle Indicator, Welding - Grounding Mechanism, Height Adjustment Capability and Digital Speed Indicator
