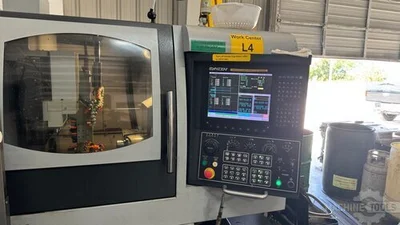

1.25” X 11.6” CNC Turning Center Ganesh CNC Control, ASCI Smoke Hog and a Chip Conveyor.
| # Axis | 7 | 7 |
| Machining Length | 95.28" | 2,420.1 mm |
| Bar Capacity | 1.25" | 31.75 mm |
| Max RPM | 6,000 RPM | 6,000 RPM |
1.25” X 11.6” CNC Turning Center Ganesh CNC Control, ASCI Smoke Hog and a Chip Conveyor. GENERAL SPECIFICATIONS Main SpindleMain Spindle RPM: 6,000 RPMSpindle Motor: 10 HP Spindle Bore: 1.456”Max. Barstock Diameter: 1.25” X - Axis Travel: 7.28”Y - Axis Travel: 19.29”Z - Axis Travel: 6.50”Rapid Travel Speed: 1,181 IPMOD Turning Tool Positions: 6 OD Tools ID Turning Tool Positions: 5 ID ToolsSpindle Center Height: 40”Sub SpindleSub Spindle RPM: 6,000 RPMSub Spindle Motor: 5 HPMax Barstock Diameter: 1.25”X - Axis Travel: 11.53”Z - Axis Travel: 11.61”Machine Dimensions: 101” X 68” X 80” HMachine Weight: 8,000 LbsINCLUDES: Ganesh CNC Control, ASCI Smoke Hog and a Chip Conveyor.
