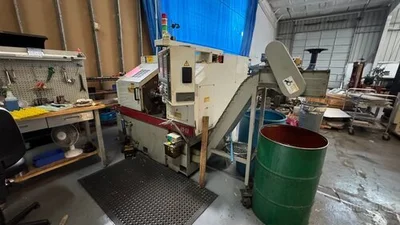

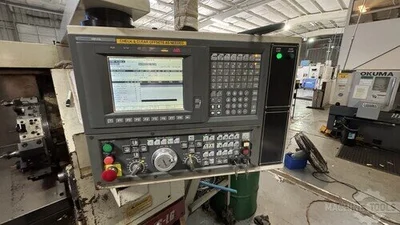

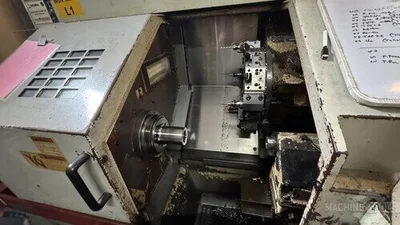

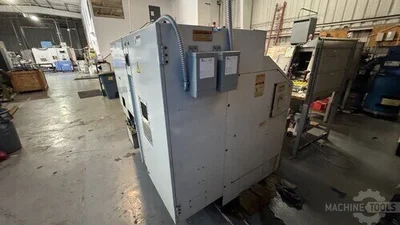

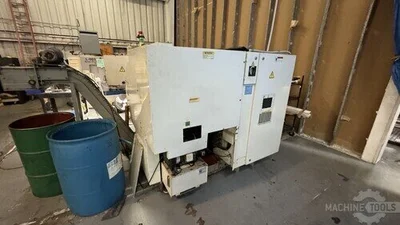

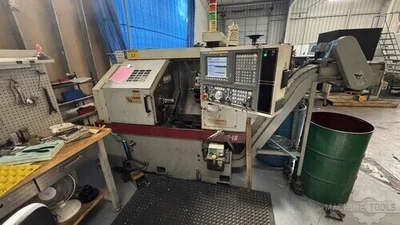

17.72” X 12.6” CNC Turning Center with Okuma OSP-U10L Control and Chip Conveyor.
| Swing | 20" | 508 mm |
| Machining Length | 11.02" | 279.91 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 8.27" | 210.06 mm |
| Tailstock | YES | YES |
17.72” X 12.6” CNC Turning Center with Okuma OSP-U10L Control and Chip Conveyor.GENERAL SPECIFICATIONS Max Swing Over Bed: 17.72” Max Swing Over Cross Slide: 11.81”Max Swing Over Carriage: 13.78”Max Distance Between Centers: 11.02”X - Axis: 6.1”Z - Axis: 12.6”Tool Positions: 12Spindle Bore: 2.36”Bar Capacity: 2”INCLUDES: Okuma OSP-U10L Control and Chip Conveyor.
