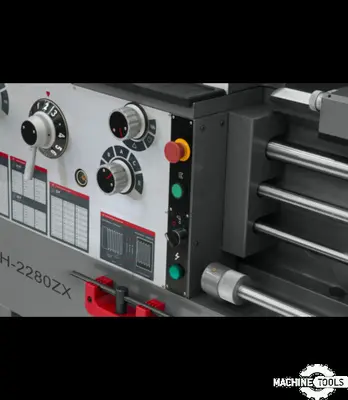

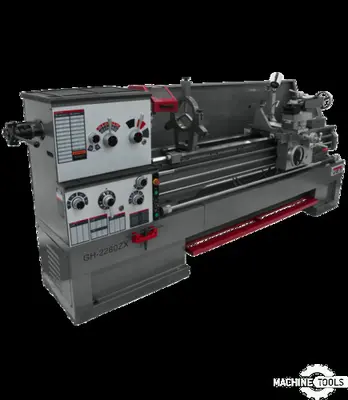

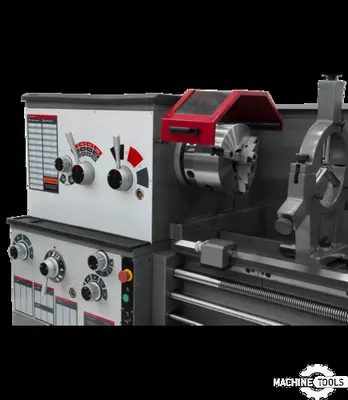

22” X 80” Engine Lathe with Articulating LED Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Mounting Pads and Levelers, Removable Gap for Large Diameter Work, Tool Box and Adjusting Tools.
| Swing | 22" | 558.8 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 13" | 330.2 mm |
22” X 80” Engine Lathe with Articulating LED Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Mounting Pads and Levelers, Removable Gap for Large Diameter Work, Tool Box and Adjusting Tools.GENERAL SPECIFICATIONS Carriage Travel: 74-5/16” Compound Slide Travel: 5-⅛”Cross Slide Travel: 12”Length of Gap: 12”Max Tool Size: 1” X 1”Motor Power: 10 HP 230/460V, 3 PHNumber of Longitudinal and Cross Feed Rates: 46/31Number of Spindle Speeds: 12Range of Inch Threads: 1-⅝” -72 TPIRange of Spindle Speeds: 25 - 1,800 RPMSpindle Bore: 3-⅛”Spindle Mount: D1-8Steady Rest Capacity: ⅜” - 7-¾”Swing Over Bed: 22”Swing Over Cross Slide: 13”Swing Through Gap: 29-½”Tailstock Spindle Travel: 5” Taper in Tailstock Spindle: MT-5Overall Dimensions: 136” X 45” X 71”Gross Weight: 7,425 LbsINCLUDES: Articulating LED Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Mounting Pads and Levelers, Removable Gap for Large Diameter Work, Tool Box and Adjusting Tools.
