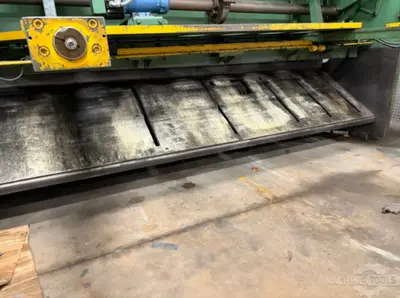

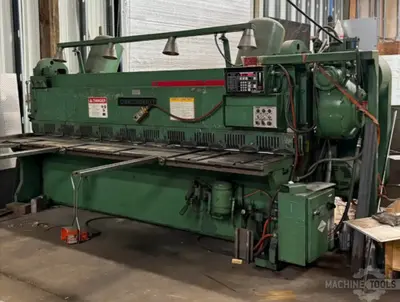

¼” X 10’ Mechanical Squaring Shear with Cincinnati Front Operated 36” Power Backgauge, Dovetail Slots in Shear Table, Electric Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction, Non-Float Inclined Ram and Extra Set of Shear Blades.
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| Power | 7.5 hp | 5.6 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
¼” X 10’ Mechanical Squaring Shear with Cincinnati Front Operated 36” Power Backgauge, Dovetail Slots in Shear Table, Electric Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction, Non-Float Inclined Ram and Extra Set of Shear Blades.GENERAL SPECIFICATIONS Shearing Capacity (Mild Steel): ¼” X 10’Distance Between Housings: 10’ 3”Number of Hydraulic Holddowns: 11Back Gauge Range: 36”Strokes Per Minute: 60Distance Under Holddown Guard: ⅞”Distance Holddown to Blade Edge: 2-⅝”Main Drive Motor: 7.5 HPApprox. Weight: 20,000 LbsApprox. Dimensions: 160” X 79” X 77”INCLUDES: Cincinnati Front Operated 36” Power Backgauge, Dovetail Slots in Shear Table, Electric Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction, Non-Float Inclined Ram and Extra Set of Shear Blades.
