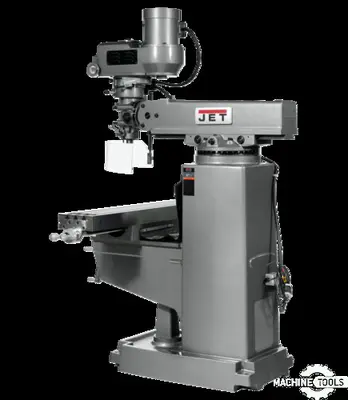

10” X 50” Vertical Milling Machine with Adjustable Gibs Throughout, Chrome Lead Screws on X & Y, Chrome Plated Motor Shaft with Bearing Support at End, Hardened & Ground Square Vertical Knee Ways and Cross Ways, One Shot Lubrication System and Internally Cooled Spindle Head.
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 35" | 889 mm |
| Travel-Cross | 15.25" | 387.35 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 3,800 RPM | 3,800 RPM |
| Taper | R8 | R8 |
10” X 50” Vertical Milling Machine with Adjustable Gibs Throughout, Chrome Lead Screws on X & Y, Chrome Plated Motor Shaft with Bearing Support at End, Hardened & Ground Square Vertical Knee Ways and Cross Ways, One Shot Lubrication System and Internally Cooled Spindle Head.GENERAL SPECIFICATIONS Collet Capacity: ⅛” - ⅞”Distance Spindle to Column Max: 26”Max Distance Spindle to Table: 19”Motor: 3 HP, 30/460V, 3PhOverall Dimensions: 96” C 78” C 88”Quill Diameter: 3-⅜”Quill Down Feed Rates: .0015 - .003 - .006 IPRRange of Spindle Speeds: 70 - 3,800 RPMSpindle Taper: R-8Spindle Travel: 5”T - Slot Centers: 2-½”Table Cross Travel: 15-¼”Table Longitudinal Travel: 35”Table Longitudinal Travel with Powerfeed: 29-¾”Table Size: 10” X 50”Travel of Knee: 15-¼”Travel of Ram: 20-½”Work Tabel Weight Capacity: 720 LbsGross Weight: 2900 Lbs
INCLUDES: Adjustable Gibs Throughout, Chrome Lead Screws on X & Y, Chrome Plated Motor Shaft with Bearing Support at End, Hardened & Ground Square Vertical Knee Ways and Cross Ways, One Shot Lubrication System and Internally Cooled Spindle Head.
