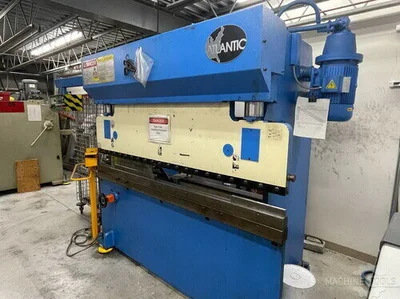

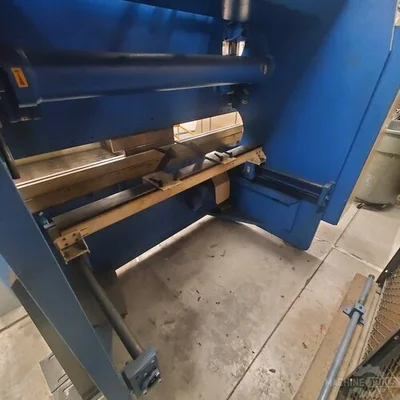

75 Ton X 82” Hydraulic Press Brake with Pedestal Control, Single Axis Power Backgauge and Foot Pedal
| Max Thickness | 1" | 25.4 mm |
| Length of Blade | 120" | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 29" | 736.6 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 25 strokes/min. | 25 strokes/min. |

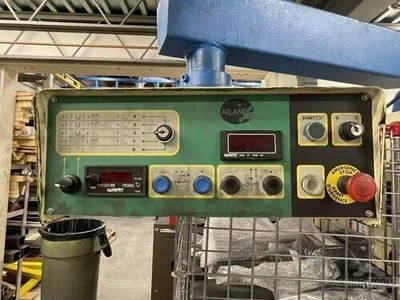

75 Ton X 82” Hydraulic Press Brake with Pedestal Control, Single Axis Power Backgauge and Foot PedalGENERAL SPECIFICATIONS Tonnage: 75Bending Length: 82”Distance Between Housings: 63”Throat Depth: 7.8”Stroke Length: 3.9”Fast Approach Speed: 165 IPMFast Return Speed: 130 IPMPress Speed: 19 IPMMotor Size: 10 HP - 220/440V - 3 PHWeight: 9,680 LbsINCLUDES: Pedestal Control, Single Axis Power Backgauge and Foot Pedal
