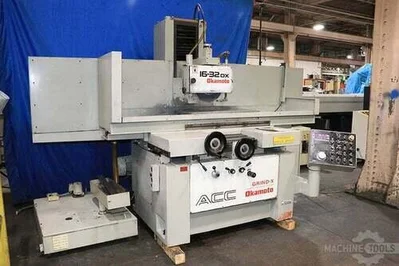

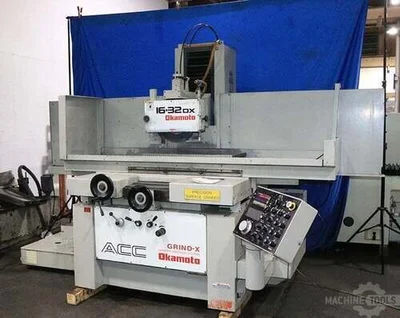

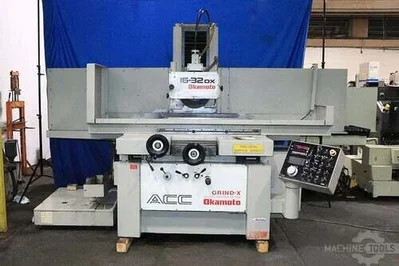

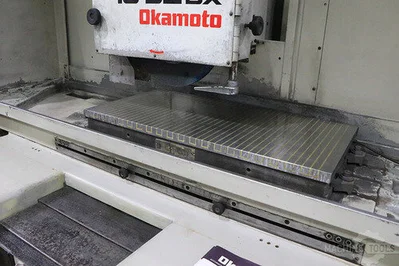

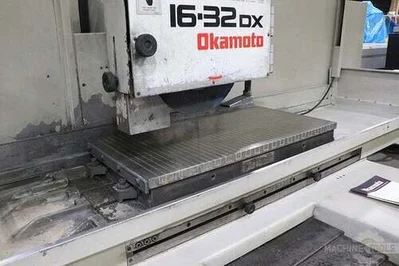

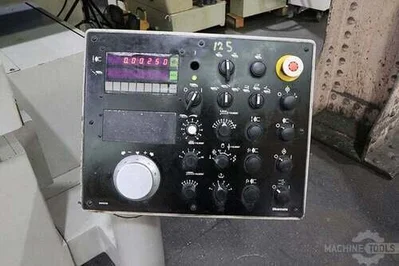

16” X 32” Automatic Surface Grinder with Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.
| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
16” X 32” Automatic Surface Grinder with Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.GENERAL SPECIFICATIONS Nominal Grinding Capacity: 16” X 32”Max Height to Table Surface: 21.5”Table Speed: Up to 82’ / Min (Infinitely Variable)Max Longitudinal Table Movement: 38”Auto Crossfeed Increment: 0.002” - 0.80”Auto Continuous Crossfeed: 4’ - 40’ / MinCrossfeed, Manual Handfeed Per Rev.: 0.25”Max Crossfeed (Manual): 18”Auto Incremental Downfeed: 0.00005” - 0.0015Power Rapid Wheel Positioning Rate: 16 IPPMSpindle Motor: 5 HPHydraulic Pump Motor: 3 HPVertical Rapid/Downfeed Motor: 0.5 HPWheel Size: 12” X 1.5” X 5”Wheel Speed: 6,500 SFPMGrinding Wheel Speed: 1,800 RPM
Voltage: 440VApprox Machine Weight: 8,800 LbsMachine Dimensions: 132” X 87” X 82”INCLUDES: Electro-Magnetic Chuck, Variable Hold Chuck Control, Power Over-the-Wheel Dresser with Micrometer Adjustment, Coolant System, Power Rapid Wheel Positioning, Electronic Handwheel for Manual Vertical Adjustment, Digital Display, Hydraulic Table Traverse and Automatic Crossfeed.
