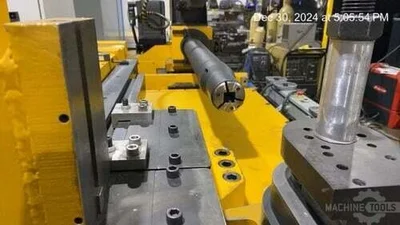

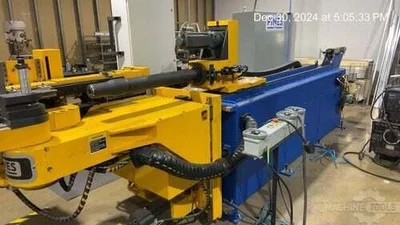

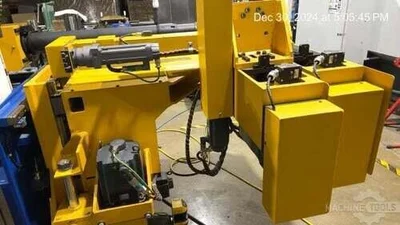

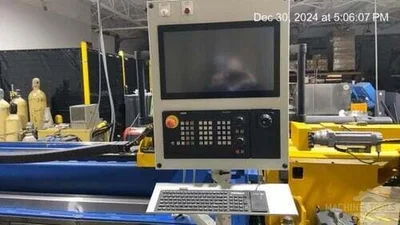

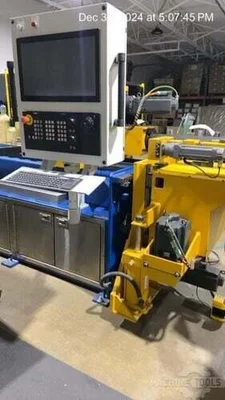

1-½” X 0.109” Tube Bender with Siemens 840D 10 - Axis Control, Counter Clockwise Rotation, Servo Controlled Swing Armm, Hitch Feed Capable, PDI Zone Recapture, In-Line Programmable Die Assist (W/ Z - Axis Shift), Clamp Die Holder, Swing & Stationary Arms, Programmable Mandrel Extractor, Dual Palm Remote Operator Control and Spring Back Compensation.
| Capacity | 1.5" | 38.1 mm |
1-½” X 0.109” Tube Bender with Siemens 840D 10 - Axis Control, Counter Clockwise Rotation, Servo Controlled Swing Armm, Hitch Feed Capable, PDI Zone Recapture, In-Line Programmable Die Assist (W/ Z - Axis Shift), Clamp Die Holder, Swing & Stationary Arms, Programmable Mandrel Extractor, Dual Palm Remote Operator Control and Spring Back Compensation.GENERAL SPECIFICATIONS Max Radius: 6” Min Radius to Diameter: 1DProgrammable Motion: 10 - AxisMax. Bend Angle: 190°Bend Arm Forward Speed: 25 RPMStandard Tube Length Over Mandrel: 13’B - Axis Travel: 360°B - Axis Speed: 60 RPMY - Axis Travel: 6’Y - Axis Speed: 2000 IPMWorking Height: 48.5”Round Tubing Y.P. to 40,000 PSI: 1-½” X 0.109”Round Tubing Y.P. to 25,000 PSI: 1-⅝” X 0.187”Round Tubing Y.P. to 60,000 PSI: 1-⅜” X .065”Steel Pipe Schedule 80: 1”Square Tubing (Mild Steel): 1-⅛” X 0.125”INCLUDES: Siemens 840D 10 - Axis Control, Counter Clockwise Rotation, Servo Controlled Swing Armm, Hitch Feed Capable, PDI Zone Recapture, In-Line Programmable Die Assist (W/ Z - Axis Shift), Clamp Die Holder, Swing & Stationary Arms, Programmable Mandrel Extractor, Dual Palm Remote Operator Control and Spring Back Compensation.
