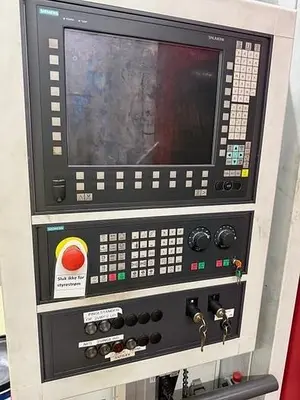

Siemens SINUMERIK 840D CNC Control

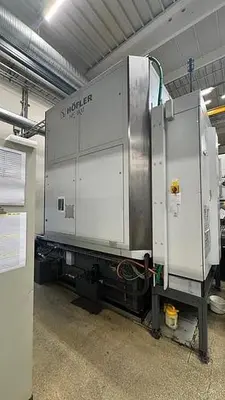

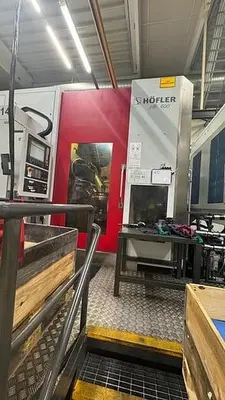

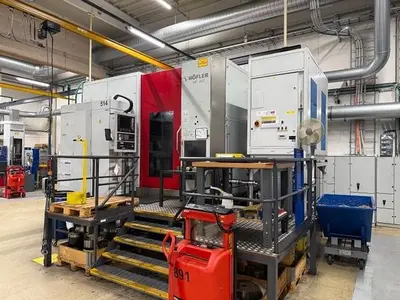

Manufacturer: Hofler
Model: HF 600
Year: 2010
Condition: Used
Stock Number: 11160

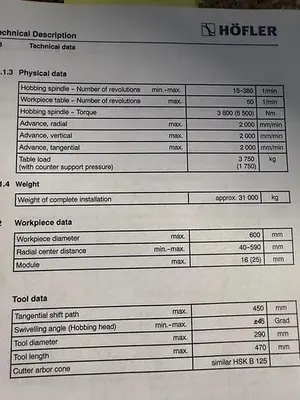

Max workpiece diameter: 600 mm
Radial center distance: 40 - 590 mm
Module: 16 (25) mm
Hobbing spindle speed: 15 - 380 rpm
Workpiece table speed: 50 rpm
Hobbing spindle torque: 3,800 (5,500) Nm
Advance radial: 2,000 mm/min
Advance vertical: 2,000 mm/min
Advance tangential: 2,000 mm/min
Table load (with counter support pressure): 3,750 (1,750) kg
Machine weight: 31 Ton

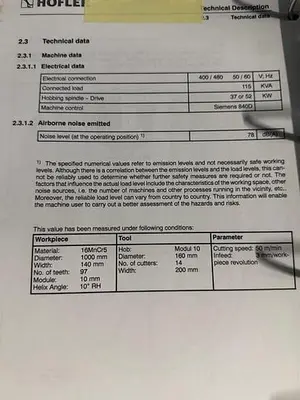

Electrical connection: 400/480 V 50/60 Hz
Connection load: 115 kVA
Hobbing spindle drive: 37/52 kW
