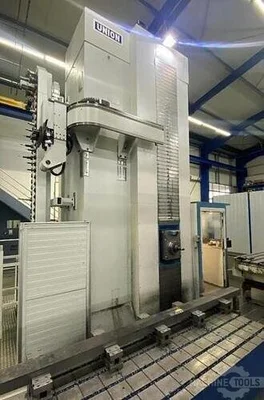

USED 2010 UNION PCR 150

Overview
Manufacturer:
UNION
Model:
PCR 150
Year:
2010
Stock #:
11136
Status:
For Sale
Description

Robust and highly versatile PR series drilling and milling machine with large floor plate3D CNC control HEIDENHAIN iTNC530Hydrostatically guided spindle system with Ø150mm quill and internal coolant supplyGenerously dimensioned hydrostatic bearings for optimum guidance of the support beam, cross-section of the support beam 450 x 550mmX-axis triple linear guide (size 65), drive via gear rack and preloaded double pinionY-axis double linear guide (size 65), drive via two geared motors (master-slave) and two powerful ball screwsMain spindle 46kW and 3,000 rpm, max. torque 2,094 NmHeidenhain direct path measuring systemsMoving tool chain magazine 80-fold with automatic changerMoving control panel for machine operator for best overview2 chip conveyors, 1x along the X-axis, 1x sideways as lifting conveyor along the Z-axisLifting pump for coolant deliveryCoolant system with belt filter and large tank (approx. 980 l), equipped with two cooling circuits, 1x low-pressure pump 80 l/8 bar and 1x high-pressure pump 38 l/20 bar to provide the internal coolant supplyHead changing station for automatic head change with 4 storage locationsHubitron HBG410-RF electronic radio handwheelElectronic 3D radio measuring probe Marposs with receiver unit WRIVery well-maintained condition with <10,000 operating hoursThe UNION PCR150 is the ideal machine tool for the machining of large components. In addition to stable heavy-duty machining, high-precision 5-sided machining of voluminous and heavy workpieces is also possible on this machine. The boring mill can be supplemented with additional units (rotary sliding table, boring head, etc.) on request and tailor fitted to your production needs.Heidenhain iTNC 530 CNC Control80 Position Automatic Tool Changer - SK50 - Chain Type Mounted at ColumnCoolant & Filtration Unit Tank 980 L - 2 Coolant Circuits PS1 Max Volume External Coolant - 80 L/min Max Pressure External Coolant - 8 bar PS2 Max Volume Internal Coolant - 38 L/min Max Pressure Internal Coolant Supply - 20 bar Filter Fleece Fineness 30 - 40 µm4 Position Head Pickup Station Mounted on Floor Plates (Cover Plate & 1 Head Included) Union Fork Milling Head KFU NC 4/90 Power Milling Spindle (S1) 37 kW Torque S1 800 Nm Max Speed 3,000 rpm Swiveling Range C-Axis ± 185° Swiveling Range A-Axis ± 95° Max Tangential Torque C-Axis 6,000 Nm Max Tangential Torque A-Axis 5,000 Nm Swivel Axis Drive - Servomotor with planetary & Worm Gears Axis Clamping Hydraulically Max Feed Force in the Spindle Axis Direction 8,400 NFloor Plates - T-Slot 2 Piece Total Dimensions 10,000 x 3,000 mm Single Plate Dimensions 5,000 x 3,000 mm Height of Plate 300 mm Slot Size 36H12 mm Slot Distance 250 mm Max Uniform Load 15 kg/m²Movable Operator Platform Vertical Travel 2,800 mm Horizontal Travel 700 mm Vertical Drive - electromechanical Lifting Speed 3.5 m/min Horizontal Drive - pneumatical

Specifications

Manufacturer: Union
Model: PCR 150
Year: 2010
Condition: Used
Stock Number: 11136
Quill diameter: 150 mm
Gear step 1: 5 - 676 rpm
Gear step 2: 677 - 3,000 rpm
X axis travel: 10,000 mm
Y axis travel: 4,000 mm
Z axis travel: 1,500 mm
W axis travel: 700 mm
Ram dimensions: 450 x 550 mm
Spindle power S1 / S6: 37 / 46 kW
Spindle torque S1 / S6: 1,683 / 2,094 Nm
Taper of boring spindle: SK 50 ISO 7388/1 Form AD
Machine dimensions: 19 x 10.1 x 6.2 m
Machine weight: 60 Ton
Connection date: 3 x 400 V - 50 Hz - 120 kVA
Max feed x, y, z, w axis: 6,000 mm/min
Max feed force: 25,000 N up to T = 3,000 mm
Rapid traverse x, y, z: 15,000 mm/min
Main drive: with Gearbox
Number of gear steps: 2
Tool clamping force: 25 kN
