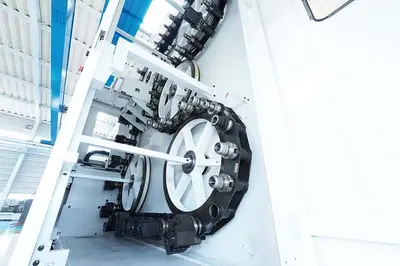

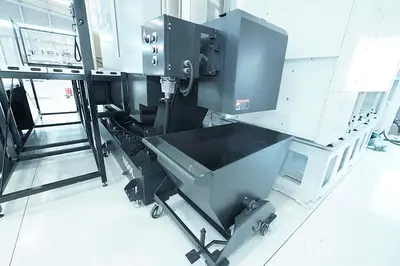

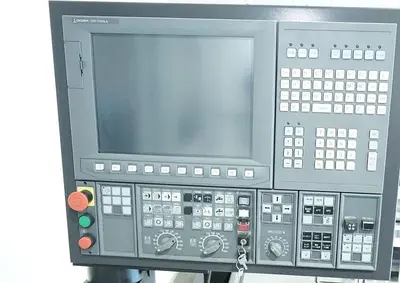

OSP-P200LA CNC Control60 Position Automatic Tool ChangerLive SpindleC ~ axis deg 0.001 Positioning accuracy of C-axis deg ±0.01Through Spindle CoolantTouch-setter Synchronous tappingMain spindle ultra-low speed cutting functionTarget seat exchangeGenerative machining Arc threading function Program store: 2 GB User task 2Coolant tank 1000ℓ Cutting oil temperature controlChip conveyorOil skimmerTooling set
Manufacturer: Okuma

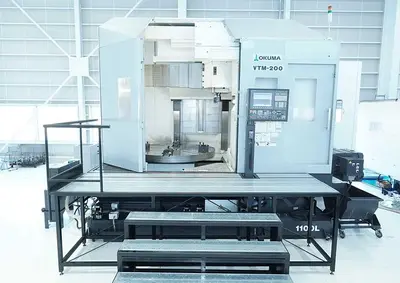

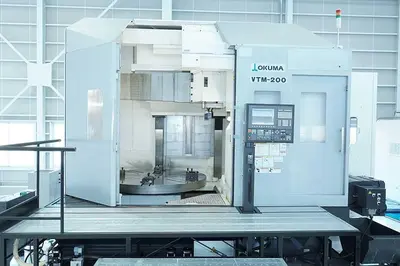

Model: VTM 200
Year: 2012
Condition: Used
Stock Number: 11135

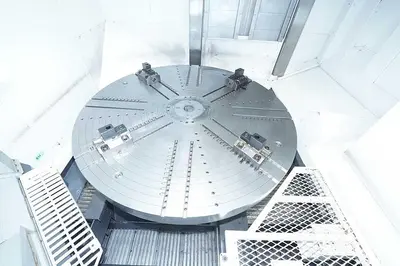

Table diameter: 2,000 mm
Swing: 2,400 mm
Turning height: 1,200 mm
Table capacity: 7 Ton
Table turn speed: 200 rpm
Live spindle speed: 4,500 rpm
X axis travel: 1,600 mm
Z axis travel: 1,200 mm
C axis indexing: 0.001°
Thru-spindle hole diameter: 160 mm
Spindle nose diameter: 380 mm
Live spindle motor: 15 kW
Spindle taper: BT 50 BIG PLUS
Table power: 30 kW
Rapid traverse x axis: 16 m/min
Rapid traverse z axis: 16 m/min
Cutting feedrate X/Z axis: 0.001 - 500 m/rev
Machine dimensions: 5,557 x 5,251 x 4,570 mm
Machine weight: 27 Ton
