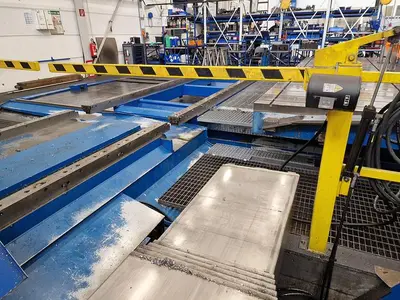

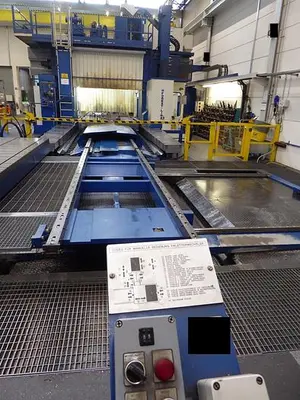

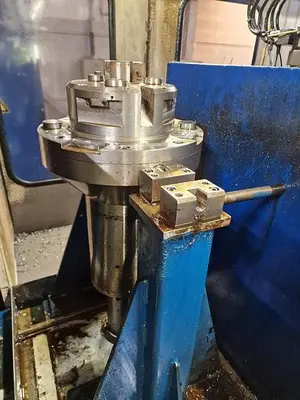

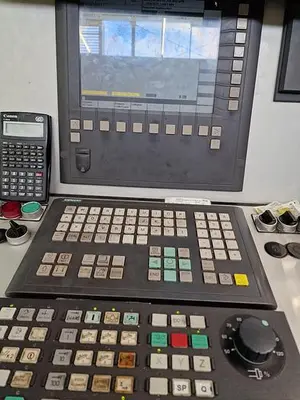

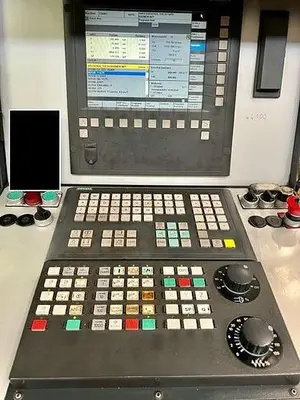

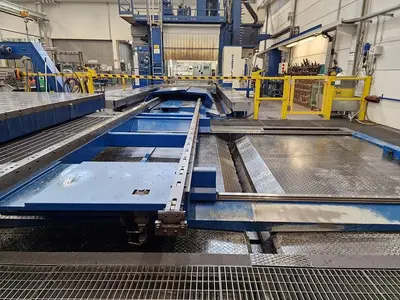

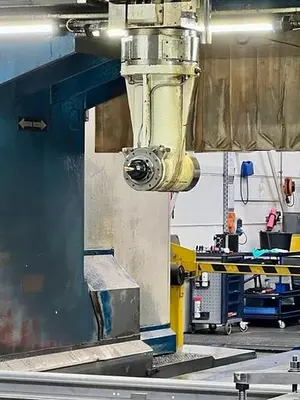

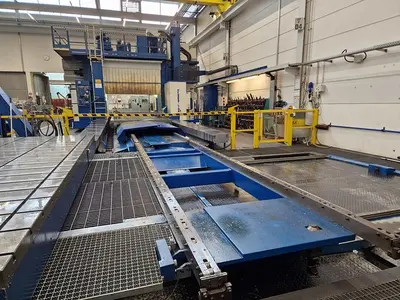

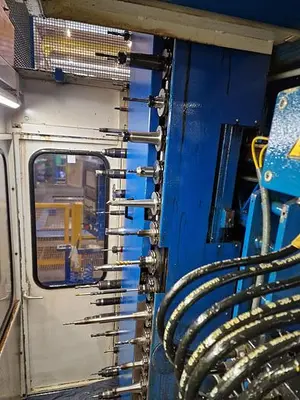

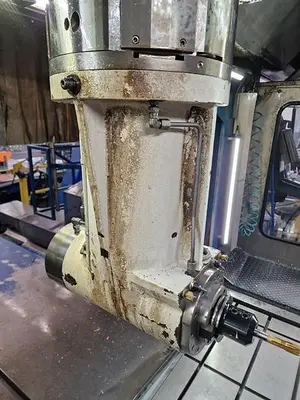

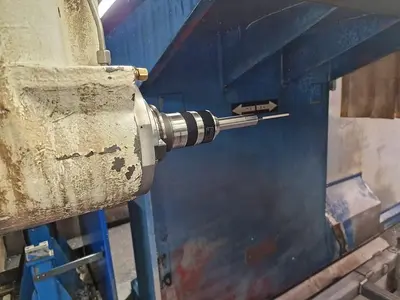

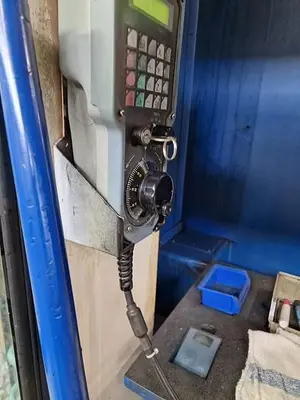

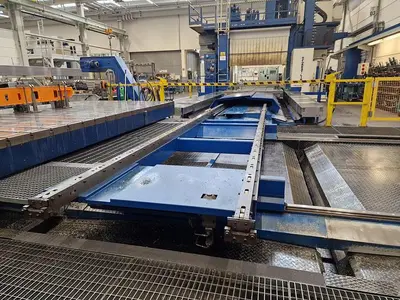

New in 1999. Rebuilt & Retrofitted in 2021Siemens SINUMERIK 840D CNC ControlLongitudinal Pallet System: 1 pallet shuttle with 2 storage stations 1 manual pallet transfer system between machine and shuttle 2 workpiece holder pallets: 5,000 x 2,500 mm80 Position Automatic Tool ChangerCooling Devices: Cooling via Orientable Nozzles Cooling through Spindle Center - 3,000 L Tank Capacity 30 L/min - Pressure 7 bar at the tool2 chip conveyors - discharge height: approx. 1,250 mm Gantry PanellingTouch probe - RENISHAW MP14Electronic hand wheelRemote diagnosisTool management and wear managementCE markingMilling unit: Type FA 305 C: Available power 30 kW Torque max. 1,070 Nm Speed max. 4,000 rpm Cross section of the slider 360 x 360 mmVertical head with spindle: Available power 30 kW Speed max. 4,000 rpm Torque max. 1,070 Nm Rapid traverse in X, Z: 25,000 mm/min Rapid traverse in Y: 20,000 mm/min Continuously adjustable work feed in X, Y and Z: 10,000 mm/min Compressive force of each axis: 25,000 N Tool holder: SK 50Angled head horizontal with graduation 144 x 2,5°, with spindle SK50: Available power: 30 kWSpeed max. 4,000 rpmTorque max. 1,070 Nm Positioning increment: 2.5°

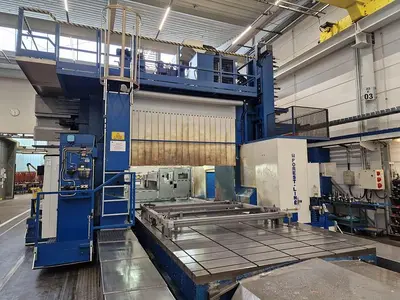

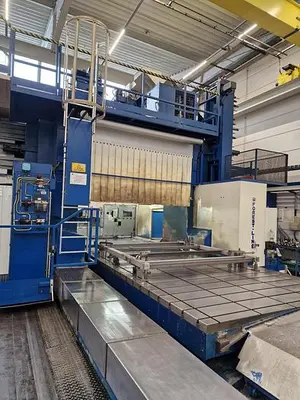

Manufacturer: Forest Line
Model: Seramill
Year: 2021
Condition: Refurbished
Stock Number: 11134
Between columns: 3,000 mm
Spindle speeds: 4,000 rpm
Height below vertical spindle: 1,400 mm
X axis travel: 11,450 mm
Y axis travel: 3,500 mm
Z axis travel: 1,250 mm

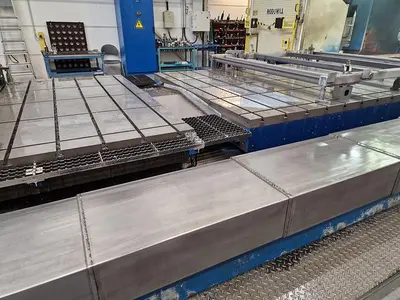

Table dimensions: (2x) 5,000 x 2,500 mm
Cross section of Z-axis slider: 360 x 360 mm
