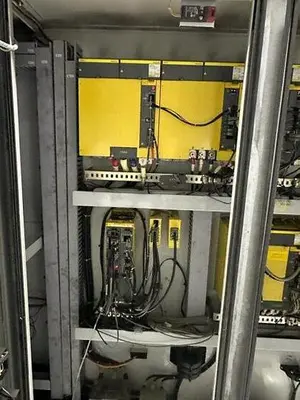

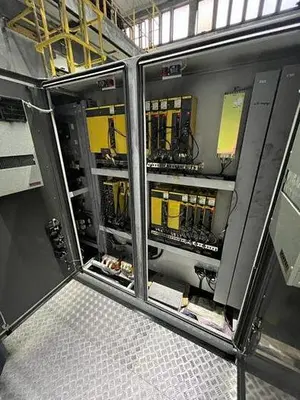

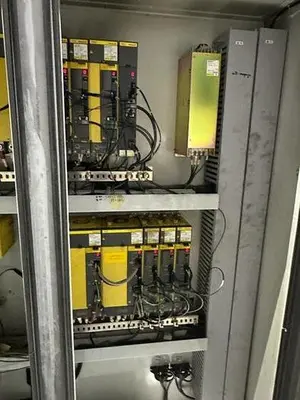

Fanuc Series 15i-Model B
Equipped with a Vertical & Horizontal Spindles
5-Face Machining – 5-Face Cutter Head
Automatic Attachment

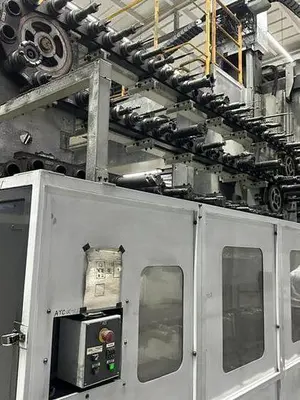

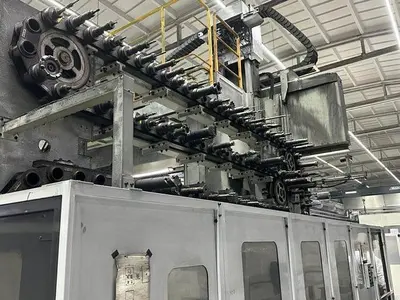

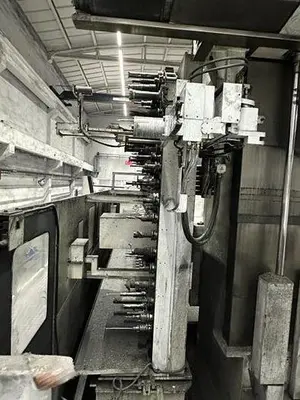

Automatic Tool Changer for Vertical & Horizontal Spindle

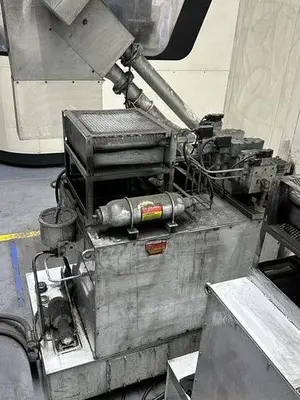

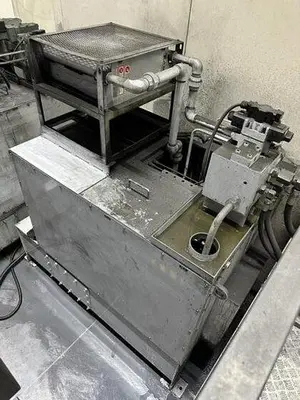

Hydraulic Unit
Oil Cooling Unit
Hydraulic Crossrail Servo Balancing System
Hydraulic Ram Balancing Cylinder

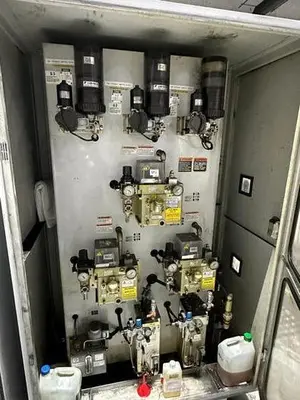

Oil Mist Lubrication Unit for Gears
Oil Mist Lubrication Unit for Bearings

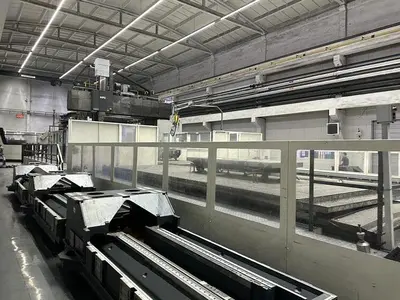

Telescopic Steel Covers – Bed, Column, Cross Rail

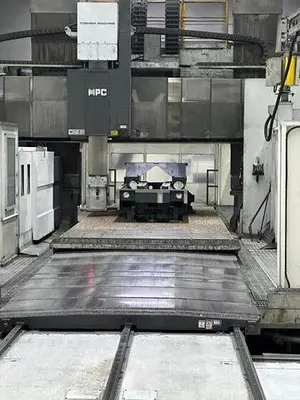

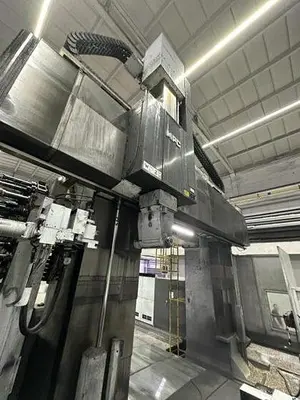

Manufacturer: Toshiba
Model: MPC 3180B
Year: 2007
Condition: Used
Stock Number: 10982
Between columns: 3,100 mm
Spindle speeds: 3,000 rpm
Machining height: 2,440 mm
X axis travel: 9,000 mm
Y axis travel: 3,900 mm
Z axis travel: 900 mm
W axis travel: 1,600 mm

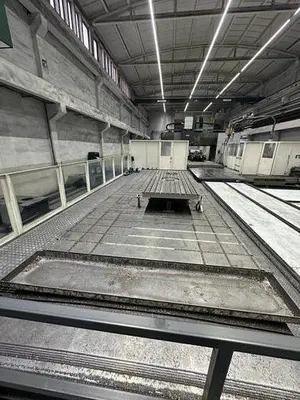

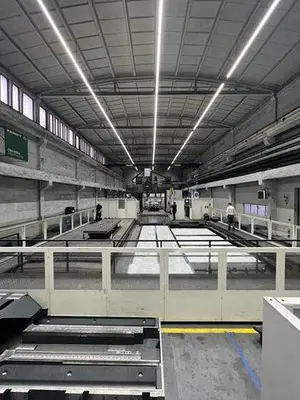

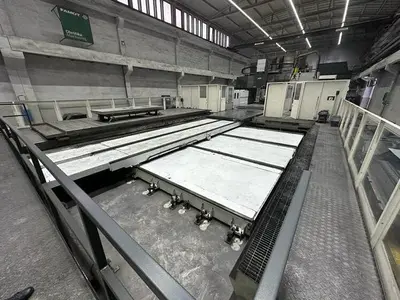

Table dimensions: 2,700 x 8,000 mm
Table capacity: 20 Ton
Spindle speed ranges: 2
Spindle taper hole: 7/24 No. 50
Tool shank: MAS BT50
Spindle drive motor - ac (50%/continuous): 30 / 22 kW
Max spindle torque: 2,170 Nm
Vertical spindle: 100 mm
Horizontal spindle: 120 mm
Ram size: 380 x 380 mm
Rapid traverse x axis: 20,000 mm/min
Rapid traverse y axis: 25,000 mm/min
Rapid traverse z axis: 10,000 mm/min
Rapid traverse w axis: 6,000 mm/min

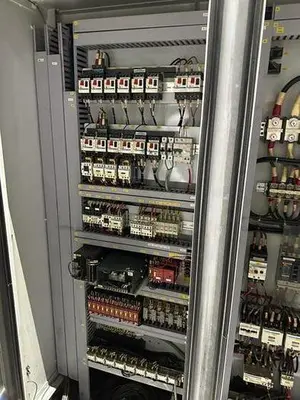

Electrics: 210V AC 60 Hz
Power capacity: 150 kVA
Machine dimensions: 9,900 x 29,110 mm
Machine height: 7,260 mm
