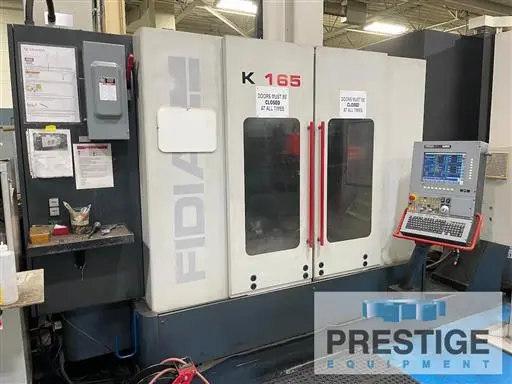

| X Axis | 71" | 1,803.4 mm |
| Y Axis | 36" | 914.4 mm |
| Z Axis | 33" | 838.2 mm |
| Power | 46 hp | 34.3 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 24 | 24 |
| Taper | HSK 63A | HSK 63A |
| Table-W | 49" | 1,244.6 mm |
| Table-L | 79" | 2,006.6 mm |
| # Axis | 5 | 5 |
| Control | CNC (FIDIA C-20) | CNC (FIDIA C-20) |
| Dimensions | 236” x 197” x 177″ High | 236” x 197” x 177″ High |
| Weight | 37478 lbs. approx. | 37478 lbs. approx. |
All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.
Features:
FIDIA C-20 Series CNC Control
Simultaneous 5 Axis Cutting
Gantry/Bridge Column Movement
Three-Dimensional Milling on High Speed
Scanning of Models With Storing of Tool Path
Three-Dimensional Measuring System
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Travels:
X Axis: 71″
Y Axis: 36″
Z Axis: 33″
A Axis: +95˚/ -110˚ (Swivelable)
C Axis: +200° / – 200° (Rotate)
Min. Increment: 0.001°
Table:
Length: 79″
Width: 49″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ x 10″
Max Weight on Table: 26455 lbs
Table to Spindle Nose: 3.9″ – 35.82″
Spindle:
Taper Size: HSK 63A
Speed Range: 24000 RPM
Spindle Power: 46 HP
Feed Rates:
Rapid X Y Z Axis: 1181 IPM
Rapid A: 3.240˚ / min
Rapid C: 3.240˚ / min
Cutting Feed rate: 394 IPM
Tool Changer:
Capacity: 24 Tools
Taper: HSK 63A
Max Tool Size: 4.92” x 12”
Max Tool Weight: 17.63 lbs.
Tool Change Time: 5.5 Second
General:
Air Required: 80 psi 4 scfm
Power: 100 kva /440v / 3-Phase
Overall Dimensions: 236” x 197” x 177″ High
Weight: 37478 lbs

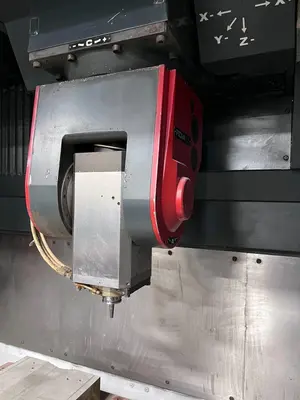

Swivel Milling Head (A & C Axis)
24000 RPM High Speed Spindle
24 Station Automatic Tool Changer
26455 lbs Heavy Table Load Capacity
Fast Rapid Traverse Rate
Coolant Through Spindle
Spindle Oil Cooler
Hand Wheel MPG Control
Dust Collector
Coolant Tank
Chip Conveyor
