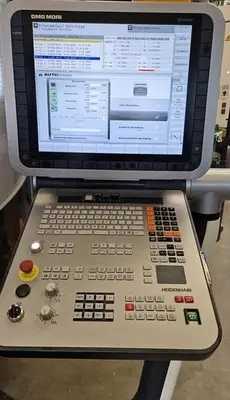

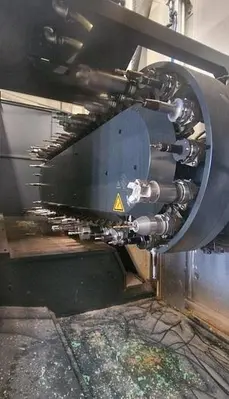

HEIDENHAIN TNC 640 3D CNC Control60 Position Chain Magazine Double Gripper Automatic Tool ChangerIKZ Coolant System - 40 bar / 23 l/min through spindle center (AD)External Coolant System - 4 bar / 40 l/minMPC Machine Protection Control chip tray with integrated coolant tank 500 lScraper belt chip conveyor with coolant system 600 litres, paper belt filterInfrared measuring probe HEIDENHAIN TS 6493D quickSET extension packageCoolant ring nozzle for vertical headstock, 15 water nozzles, 5 air nozzlesFlushing gun with pump 2 bar / 40 l/minCooling device Blast air through spindle center, selectable via M functionOperating mode 4 - Manual intervention with open work area doorsDocumentation
Manufacturer: DMG
Model: DMU 95 monoBLOCK
Year: 2016
Condition: Used
Stock Number: 11179
Spindle speeds: 20,000 rpm
X axis travel: 950 mm
Y axis travel: 850 mm
Z axis travel: 650 mm
Swivable table dimensions (C-axis): 850 x 750 mm
C axis: 360°
Rigid table dimensions: 1,000 x 750 mm
Spindle power: 35 kW (40% ED) / 25 kW (100% ED)
Tool taper: HSK - 63A - DIN 69893
Machine weight: 14 Ton
Connected load: 50 kVA
