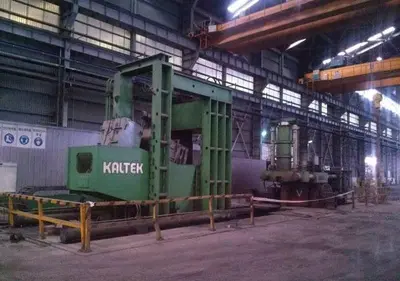

Manufacturer: Kaltek
Model: 6300
Condition: Used
Stock Number: 10493
Outside diameter of finished ring: 1,200 - 6,300 mm
Height of finished ring: 80 - 1,000 mm
Inside diameter of ring blank for mandrel diameter - 300mm: min 320 mm
Height of ring blank: max 1,050 mm
Ring weight: max approx 12,000 kg
Radial rolling force: max 300 Ton
Main roll diameter: 1,200 mm
Rolling speed: max approx 1.7 m/sec
Horizontal stroke of mandrel: 1,000 mm
Axial rolling force: 250 Ton
Length of taper theoretical: 1,400 mm
Taper cone angle: 35 Degree
Horizontal stroke of axial roll stand: 5,700 mm
Vertical stroke of upper axial roll: 1,050 mm
Max distance between the axial roll: 1,120 mm
Main roll driving motor: DC 710 kW x 570 Volt
Axial roll driving motor: DC 710 kW x 570 Volt
Hydraulic main pump motor: 4 Sets - 90 kW x 440 Volt x 60 Hz
Cooling circulation motor: 2 Sets - 3.7 kW x 440 Volt x 60 Hz
Hydraulic pump: 4 Sets - A4V-180 (Rexroth)
Max total flow: 720 Liter/min
Grease lubrication unit: 2 Sets
