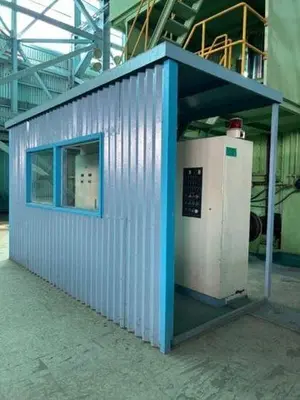

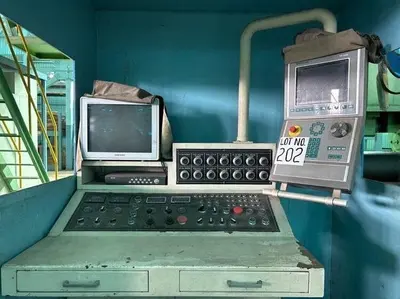

Control Panel
Panel Boxes

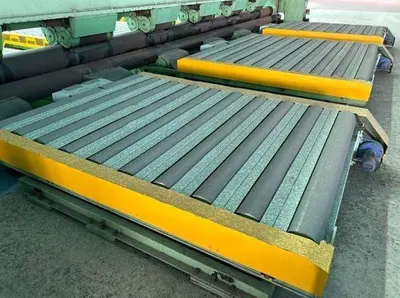

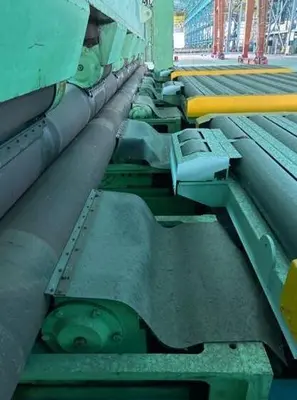

Conveyors

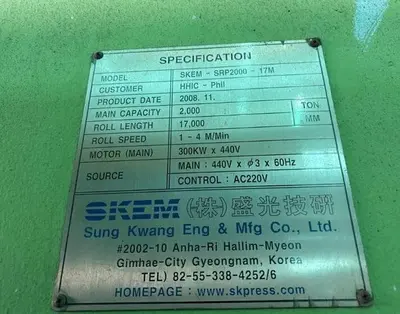

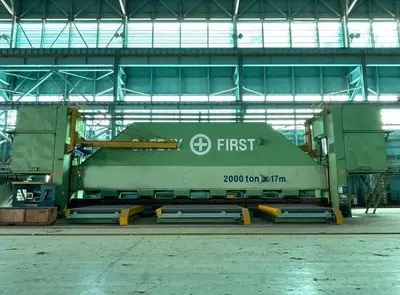

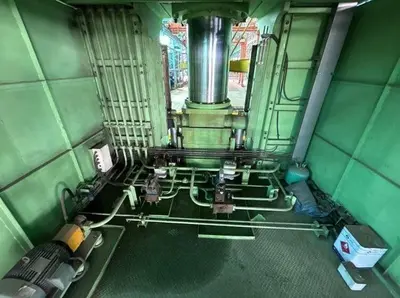

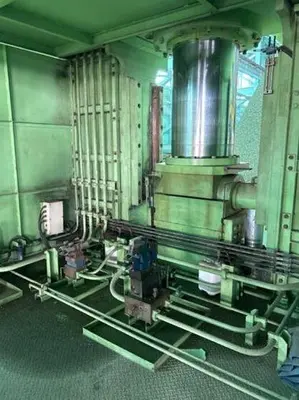

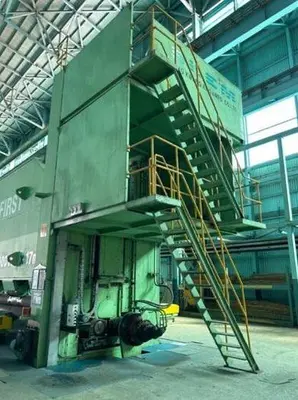

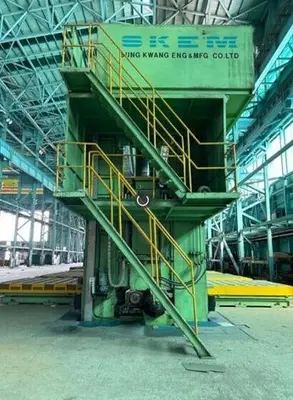

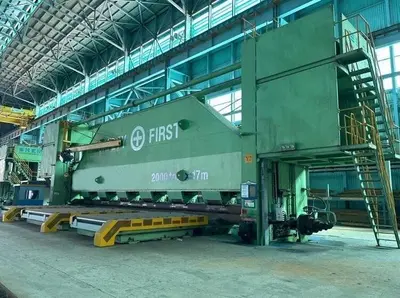

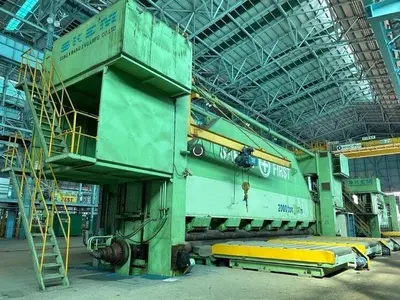

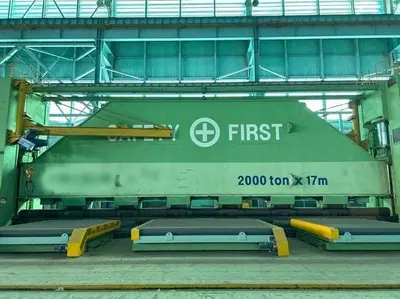

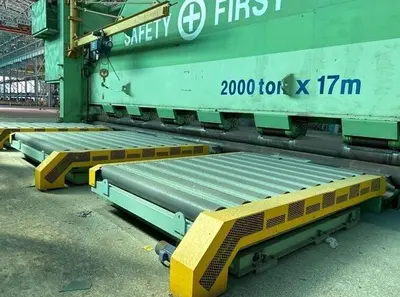

Manufacturer: SKEM
Model: SRP 2000 - 17M
Year: 2008
Condition: Used
Stock Number: 10972
Top roll diameter: 480 mm
Capacity: 2,000 Ton
Bottom roll: 400 mm; 6 sets of Back-Up Rolls
Working size: 17,000 mm x 35 Ton, 5,500 x 40 Ton
Max roll length: 17,000 mm
Minimum daylight between roller: 960 mm
Maximum ram stroke: 1,040 mm
Min/max bottom roll centers: 500 / 800 mm
Pressing speed: 1 to 6 mm/sec, Ram Approach 60 mm/sec

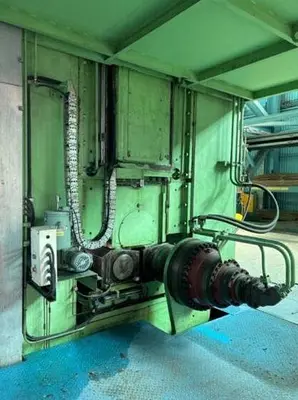

Main motor: 93 kW
Machine weight, approximate: 600 Ton
Machine dimensions (l x w x h): 25,000 x 3,200 x 8,000 mm
