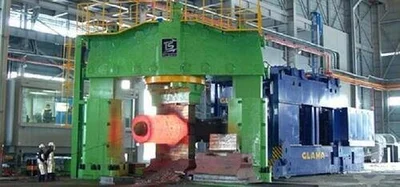

Glama 80 Ton Manipulator
2 Columns
Oilgear Hydraulics
Fast Acting – Pull Down
Manufacturer: Skoda
Year: 2010
Condition: Used
Stock Number: 10160
Press power: 8,000 Ton
Type: Pull-Down
Column quantity: 2 (Tie Rod - 4 Pos)
Operation method: Oil Hydraulic
Daylight: 6,100 mm
Main cylinder quantity: 3
Stroke: 2,500 mm
Center cylinder (x 1): 1,250 mm
Outer cylinder (x 2): 630 mm
Forging press capacity: 6,300 Ton
Upsetting press capacity: 8,000 Ton
Return cylinders (x 2): 500 mm
3 cylinder: 0 - 62 mm/sec
2 cylinder: 0 - 184 mm/sec
1 cylinder: 0 - 93 mm/sec
Approach: 0 - 250 mm/sec
Return: 0 - 250 mm/sec
Upsetting (at 8,000 ton): 0 - 48 mm/sec
Press height (floor - max): 10,370 mm
Press height (under floor): -14,200 mm
Slide table size: 3,150 x 8,400 mm
Slide table shifting stroke: 8,000 mm
