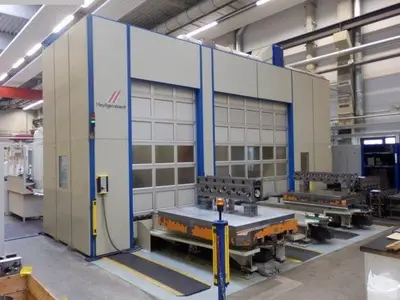

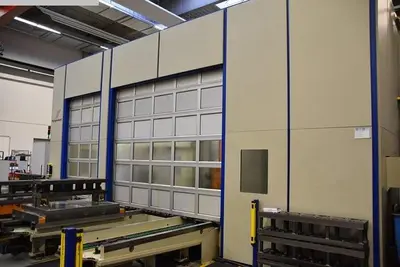

USED 2005 HEYLIGENSTAEDT VARIMAT-HC 1000 X 1500

Overview
Manufacturer:
HEYLIGENSTAEDT
Year:
2005
Stock #:
10575
Status:
For Sale
Description

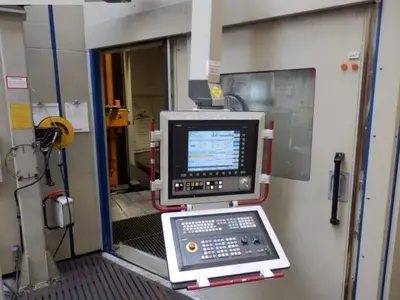

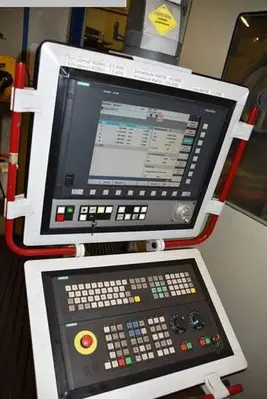

Siemens 840 D CNC Control System
192 Position Automatic Tool Changer

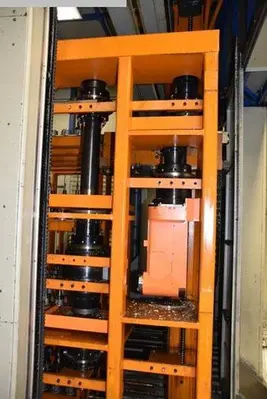

Head Changer For 6 heads incl. 4 different heads

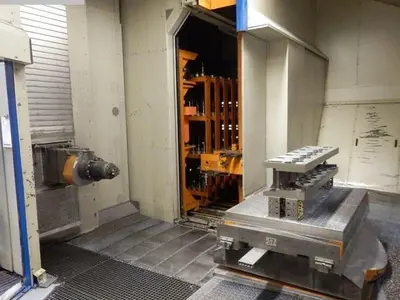

Pallet Changer for 2 Pallets 1500 x 1000 mm and 1 Pallet 2000 x 1500 mm
Internal Cooling For Heads And Tools
Machine Was Connected To The Central Coolant System, Does not Include Coolant Tank

Specifications

Manufacturer: Heyligenstaedt
Model: Varimat-HC 1000 x 1500
Year: 2005
Condition: Used
Stock Number: 10575
X axis travel: 4,000 mm
Y axis travel: 2,000 mm
Z axis travel: 1,000 mm
W axis travel: 2,000 mm
Table surface area 1: 2,000 x 1,500 mm
Table surface area 2: 1,500 x 1,000 mm
Table load capacity: 10 Ton
Spindle diameter: 125 mm
Power capacity - milling spindle: 42 kW
Tool taper: ISO 50
Table positioning: 4 x 90 Degree
Spindle turning speed - stepless: 6.3 - 4,000 rpm
Feed speed: 1 - 40 m/min
Rapid traverse: 40 m/min

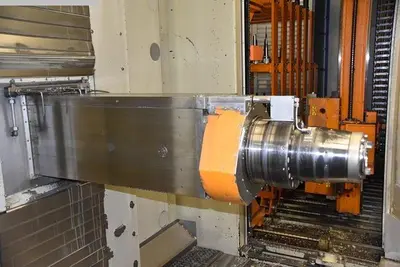

Ram cross section: 400 x 320 mm
Weight of machine, approx.: 50 Ton
Machine dimensions, approx.: 12 x 12 x 4.5 m
