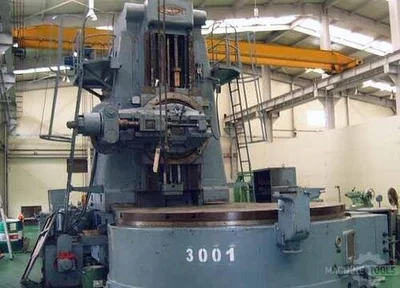

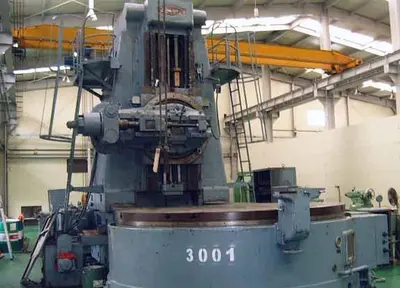

Full Set of Change Gears
Manufacturer: Craven
Model: 6000mm
Condition: Used
Stock Number: 10161
Retrofit: 1991
Maximum diameter of gear: 6,000 mm
Table diameter: 3,048 mm
Maximum revolution of table for hobbing & quick rotation: 0.5 rpm
Width of gear: 1,216 mm
Maximum tooth pitch: M50
Vertical stroke of hob slide: 1,524 mm
Maximum diameter hob cutter: 560 mm
Hob speeds: 18 - 150 rpm
Maximum helix angle: 30 Degree
Column transverse on bed: 3,000 mm
Total power requirement: 40 kW
Machine dimensions: 11,400 x 4,400 x 5,500 mm
Approximate machine weight: 110 Ton
