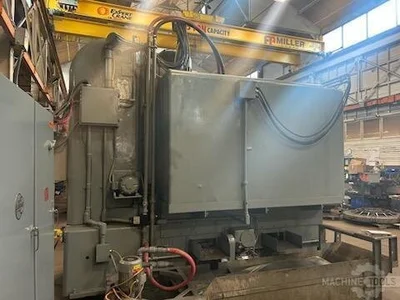

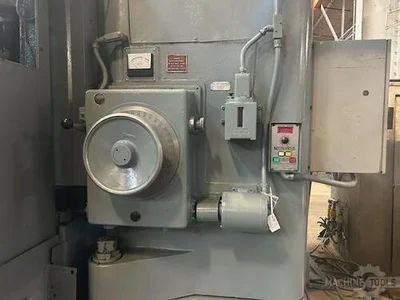

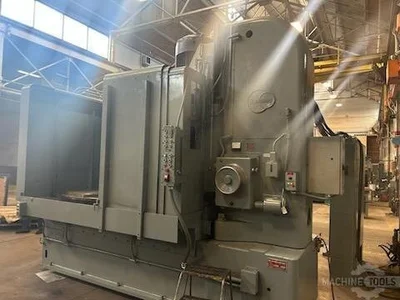

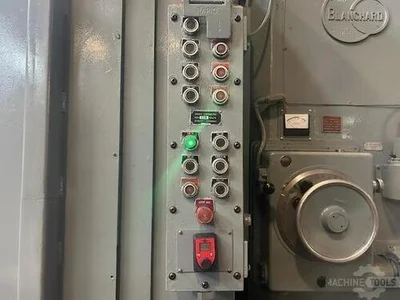

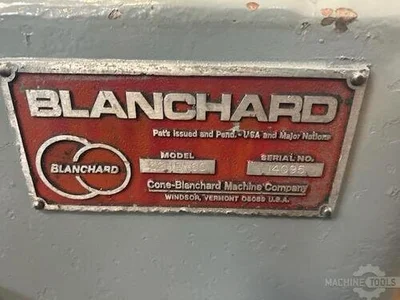

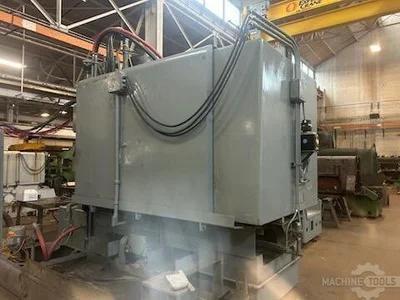

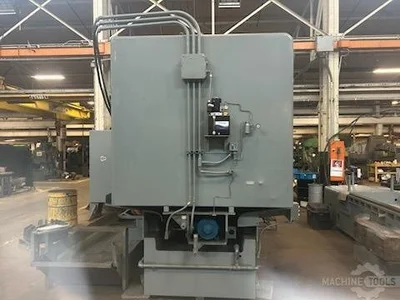

USED 1973 BLANCHARD 32HD-60

Blanchard #32HD-60, 200 HP, 60" Geared Head Vertical Spindle Rotary Surface Grinder, 73', Certified

Chuck Dia.: 60 inches

Spindle (Horz/Vert): No Specs Attached

Power: 200 horsepower

Swing: 72 inches

Under Wheel: 26 inches

Table Speeds: No Specs Attached

Grinding Wheel Width: No Specs Attached inches

Table Motor Horsepower: No Specs Attached horsepower

Grinding Wheel Dia.: 32 inches

CNC Control: No Specs Attached

Type of CNC Control: No Specs Attached

Dimensions: 186" L X 90" W X 11'-9" Tall

Weight: 40200 pounds

60" Magnetic Chuck72" Swing Inside Water Guards200 HP Main Grinding Spindle 3/60/460 Volt32" Diameter Grinding WheelCortland Style 8 Segment Grinding Chuck5.6 to 20.7 Chuck Rotation Speeds RPM.004 to .080 Down Feed Rates IPM (Pick-Feed)10,000 Lb. Approximate Table LoadMachine Weight Approximately 40,200 Lbs.Wheel DresserRequires external Coolant System (not included)Coolant Requirements 1,000 Gallon (Min. Outside System)Dimensions (Approximate):11'-9" Height from base to top of column180" Length90" Width42,000 Lbs. WeightMachine is being sold as certified with the following minimum scope of work completed:Main Motor:- Rebuild Spindle w/ new bearings and seals and new gear setTransmission:- Install new variable speed drive transmissionSaddle Work: - Replace gear rack.- Re-fit saddle to ways.- New lube lines.- New way wipers.- New oil lube pump for ways.

Saddle Traverse Gear Box:- New bearings and seals- New pinion gear shaftClean, inspect and test upper down feed gear boxNew Coolant LinesRepair Operator GuardClean and paint machineTram the head to the tableGrind table flatTest grind parts*****MACHINE IS STILL IN PROCESS. UPDATED PICTURES WHEN COMPLETE*****
