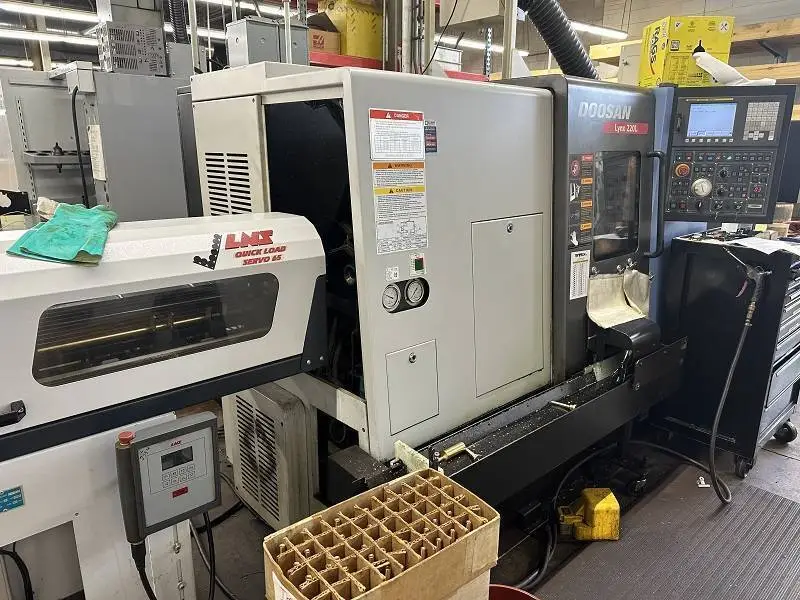

2008 DOOSAN LYNX 200LC CNC Lathe with Fanuc i controls, 20 hp, and max 4,000 RPM. Features include a parts catcher, tool presetter, and LNS Quick Load Servo 65 Barfeeder. Swing 20.1", machining length 12". Tailstock and 8" Samchully 3-jaw chuck included.
| Swing | 20.1" | 510.54 mm |
| Machining Length | 12" | 304.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Fanuc i controls
Tool pre setter
Parts catcher
8” Samchully 3–jaw chuck
Royal S26 collet closure
Bar feed interface
LNS Quick Load Servo 65 Barfeeder
Turbo chip conveyor
Tail stock
Manuals
Misc. tool holders
