Used Minster #6 OBI Punch Press available with 3" ram stroke, 32"x21" bed size, and 24"x14" ram. Features air clutch & brake, Protech light curtains, dual palm controls, and 10 HP motor. Compact at 72"x60"x128", weighing 14,500 lbs.
| Tonnage | 60 T | 54.431 t |
| Stroke | 3" | 76.2 mm |
| Shut Height | 13.1" | 332.74 mm |
| Bed W | 21" | 533.4 mm |
| Bed L | 32" | 812.8 mm |
| Air Clutch (Yes/No) | Yes | Yes |
| Crank (Single/Double) | Single | Single |
| Dimensions | 72 x 60 x 128 | 72 x 60 x 128 |
| Weight | 14500 | 14500 |

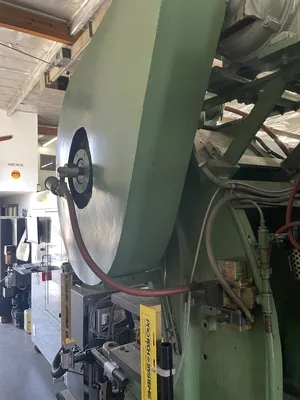

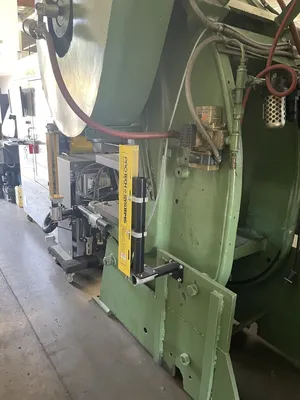

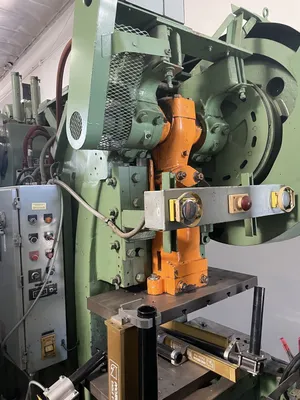

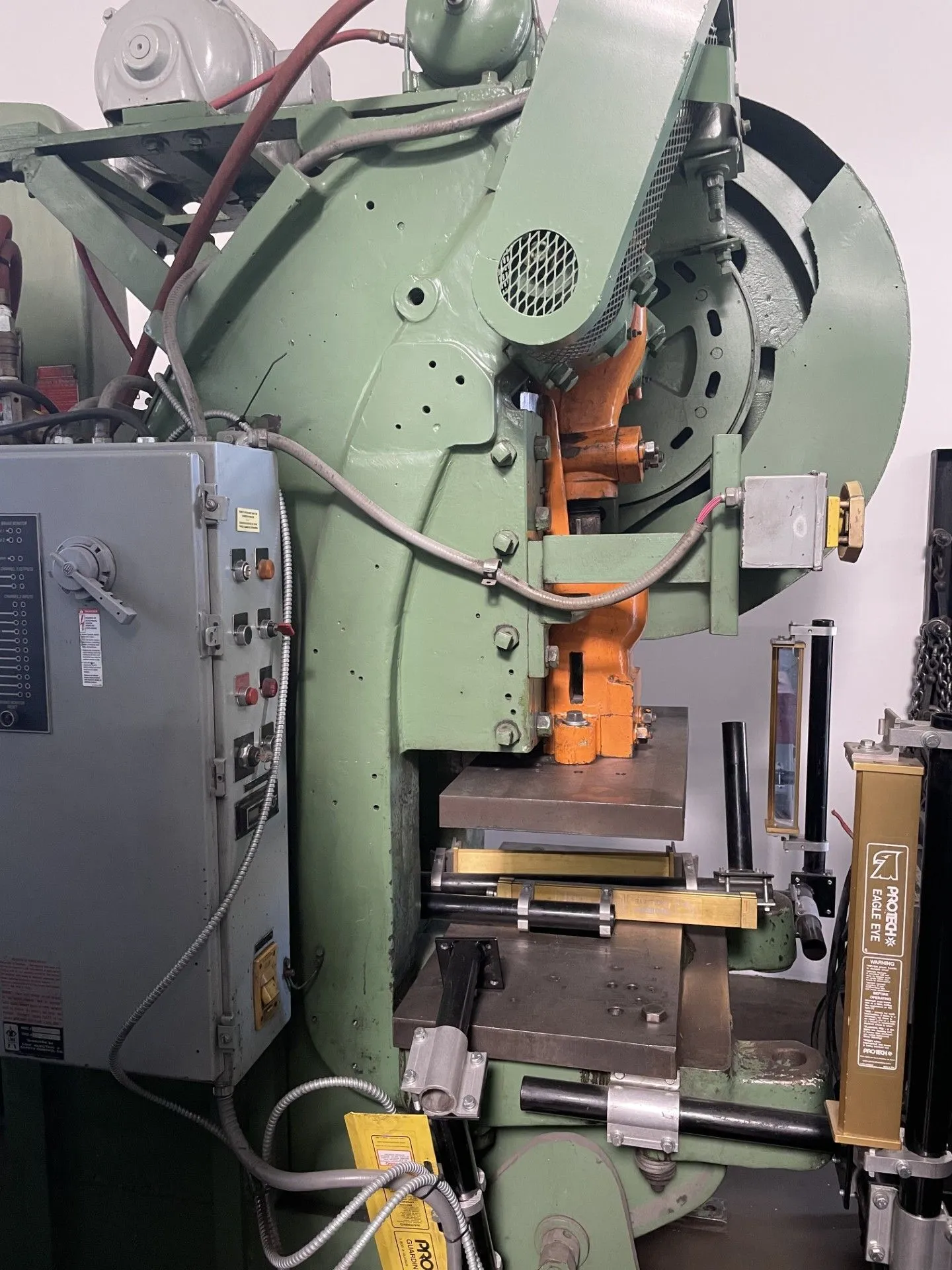

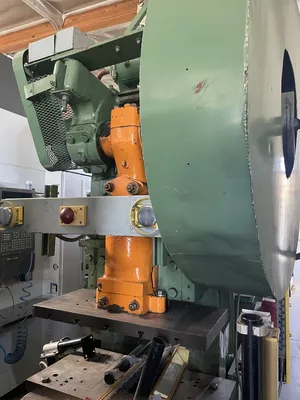

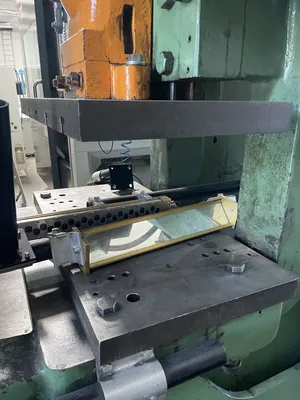

Minster #6 OBI Punch Press #7640 #1
SPECIFICATIONS:
Ram Stoke: 3"
Ram Adjustment: 2.75"
Shut Height: 13.1"
Bed Size (L-R, F-B): 32" x 21"
Ram Size (L-R, F-B): 24" x 14"
Throat Depth: 11"
Opening Through Back Housings: 15"
Dimensions (L x W x H): 72" x 60" x 128"
Weight: 14,500 Lbs.
EQUIPPED WITH:
Air Clutch & Brake

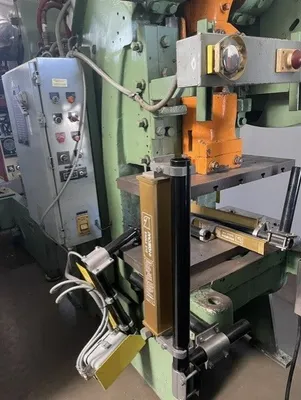

Protech Light Curtains
Link Safety Controls
Air Counter Balance
Dual Palm Controls
Horsepower: 10
