5 Spindle, 2 Axis, Siemens 802DSL CNC Control, Excellent Support and Service

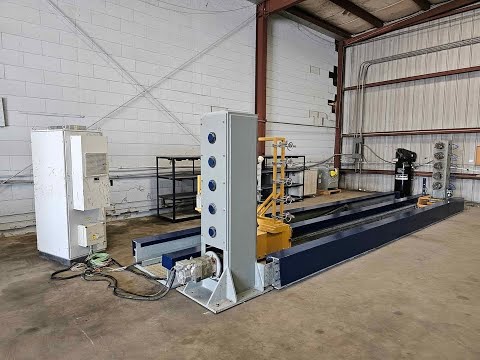

CNC Technic Filament Winding Machine 2 Axis 5 Spindle (2012)
Number of Axes: 2 (two)
Number of Simultaneous Axes: 2 (two)
Number of Spindles: 5 (Five)
Max Job Diameter p/spindle: 400mm. 15.8”
Max Job Length: 6500mm. 256”
Max Rotation Mandrel weight: 100Kgs 220 pounds
Control System: Siemens 802DSL
Max Stroke of X: 0 – 360 Degrees
Max Stroke of Y: 0 – 6500 mm 0 – 256”
Max Speed of X: 0 – 200 RPM
Max Speed of Y: 0 – 60m/min 196 ft/min
Fiber delivery speed: 60m/min 196 ft/min
Mandrel Holding (Headstock Side) Flange
Mandrel Holding (Tailstock side) Pneumatic System
System Double walled Drum type resin Bath
Internal Unwinding creel stand with 30 + 30 spool capacity for Inside Pull fibers
External Unwinding creel stand for 10 spools with simple drag brake tensioners for outside pull fiber
20 KVA connection Load
480v 3phase 60 Hz
5 Spindle, 2 Axis, Siemens 802DSL CNC Control, Excellent Support and Service
