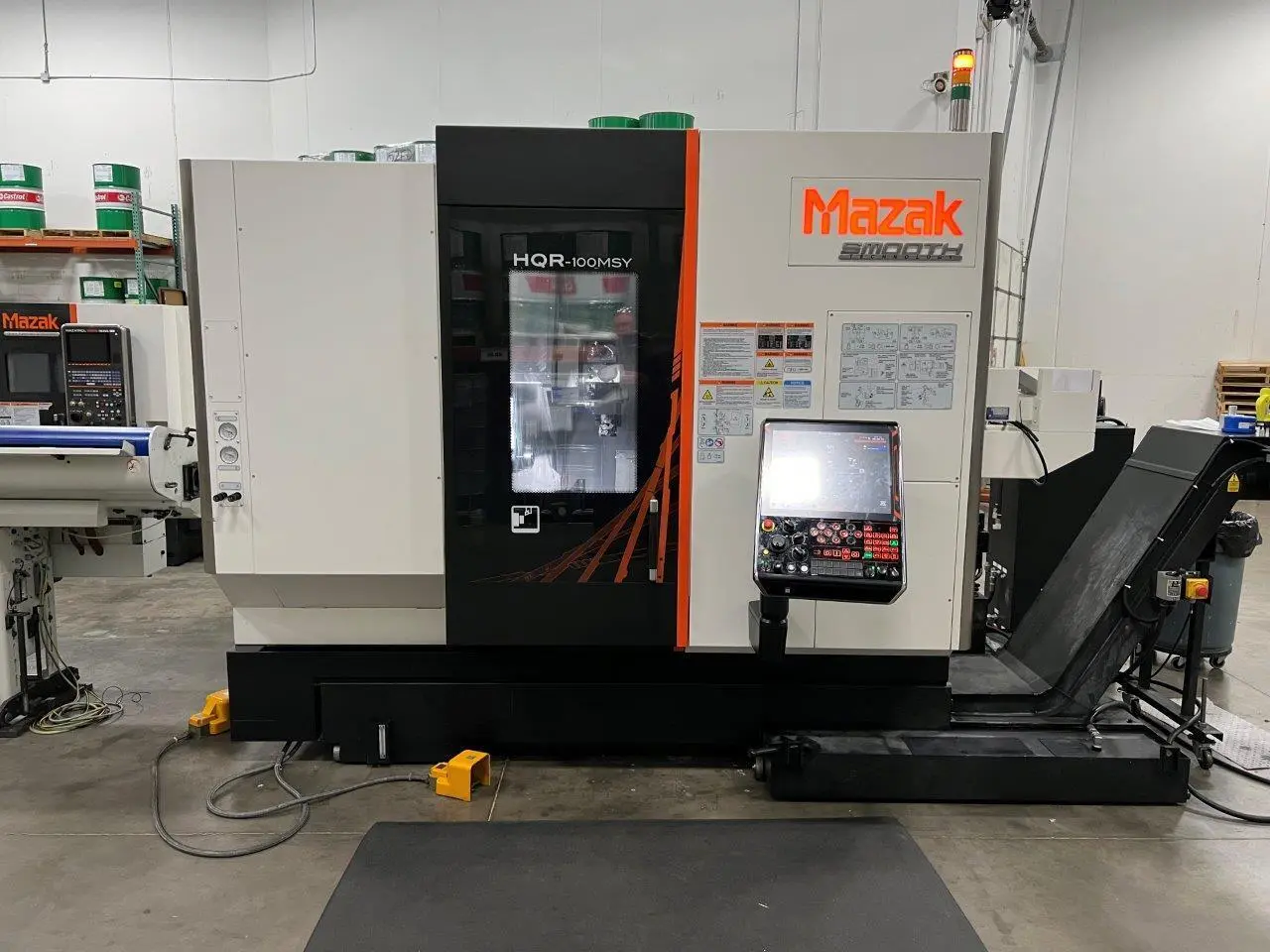

2017 MAZAK HYPER QUADREX 100MSY CNC Lathe, equipped with Smooth G, Dual Turrets, Live Tooling, Chip Conveyor, Automatic Tool Presetter, and Coolant Chiller. 6,000 RPM spindle, 11.6" max turning dia, 24.375" max turning length. Approx. weight: 19,580 lbs.
| Chuck Size | 6" | 152.4 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
Bar Capacity: 2"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.875"
X Axis 2: 4.31"
Z Axis Travel: 20.375"
Z Axis 2: 22.75"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station x 2
Y Axis Travel: 4"(+/- 2)
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 11.6"
Max Turning Length: 24.375"
Max Swing: 12.6"
Dimensions: 112" x 90" x 95" (approx.)
Weight: 19,580 LBS
Smooth G Control
Chip Conveyor
Automatic Tool Presetter (x2)
Parts Catcher/Unload hand
Live Tooling (upper and lower turrets)
Sub Spindle
Coolant Chiller
213 PSI HP Coolant
Y Axis (both upper and lower turrets)
Collet Chuck on Spindle One
3-Jaw Chuck On Spindle Two
Turret Tooling In Pictures Included.
2008 Iemca Prodigy 551 Barfeed Available (Previously connected to Hardinge lathe. Needs a Mazak cable from Bucci)
