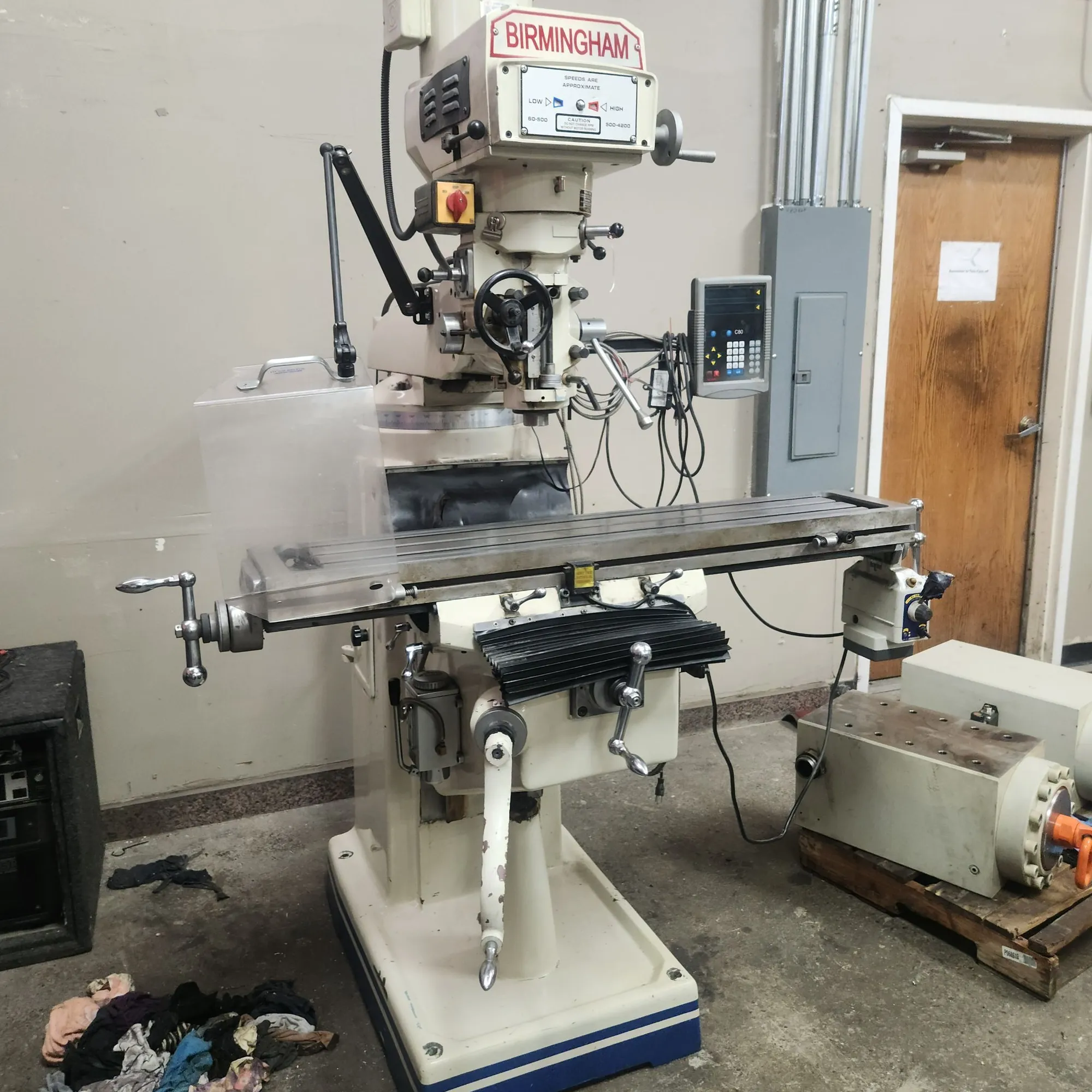

Birmingham BPS-1649 vertical knee mill.
| Table-W | 9" | 228.6 mm |
| Table-L | 50" | 1,270 mm |
| RPM | 5,440 RPM | 5,440 RPM |
Table Size: 9" x 49"
Table Load Capacity: 661 Lbs.
Longitundinal Travel (X): 33-1/4"
Cross Travel (Y): 14"
Vertical Travel (Z): 15-3/4"
Distance from Table to Spindle: 2-3/8"~18"
Ram Travel: 12-3/4"
Quill Diameter: 3-3/8"
Quill Travel: 5"
Quill Feed: 0.0015", 0.003", 0.006"/REV
Spindle Speeds: 60-4200 RPM
Spindle Taper: R-8
Spindle Motor: 3 HP
Head Tilting: Forward & Bakwards (45°), Right & Left (90°)
Voltage: 230/460V~3 Phase
Dimensions (LxWxH): 58" x 63" x 83"
Weight: 2,200 Lbs.
auto x-axis feed.
Newall dual axis DRO.
