This is a low--hour H-frame hydraulic press in very good condition.
For many years is has been in our shop where it has been used sparingly, as it was before we acquired it.
| Tonnage | 50 T | 45.359 t |
| Stroke | 4" | 101.6 mm |
| Dimensions | 43-1/2" x 36" x 85" | 43-1/2" x 36" x 85" |
| Weight | 810 lbs. | 810 lbs. |

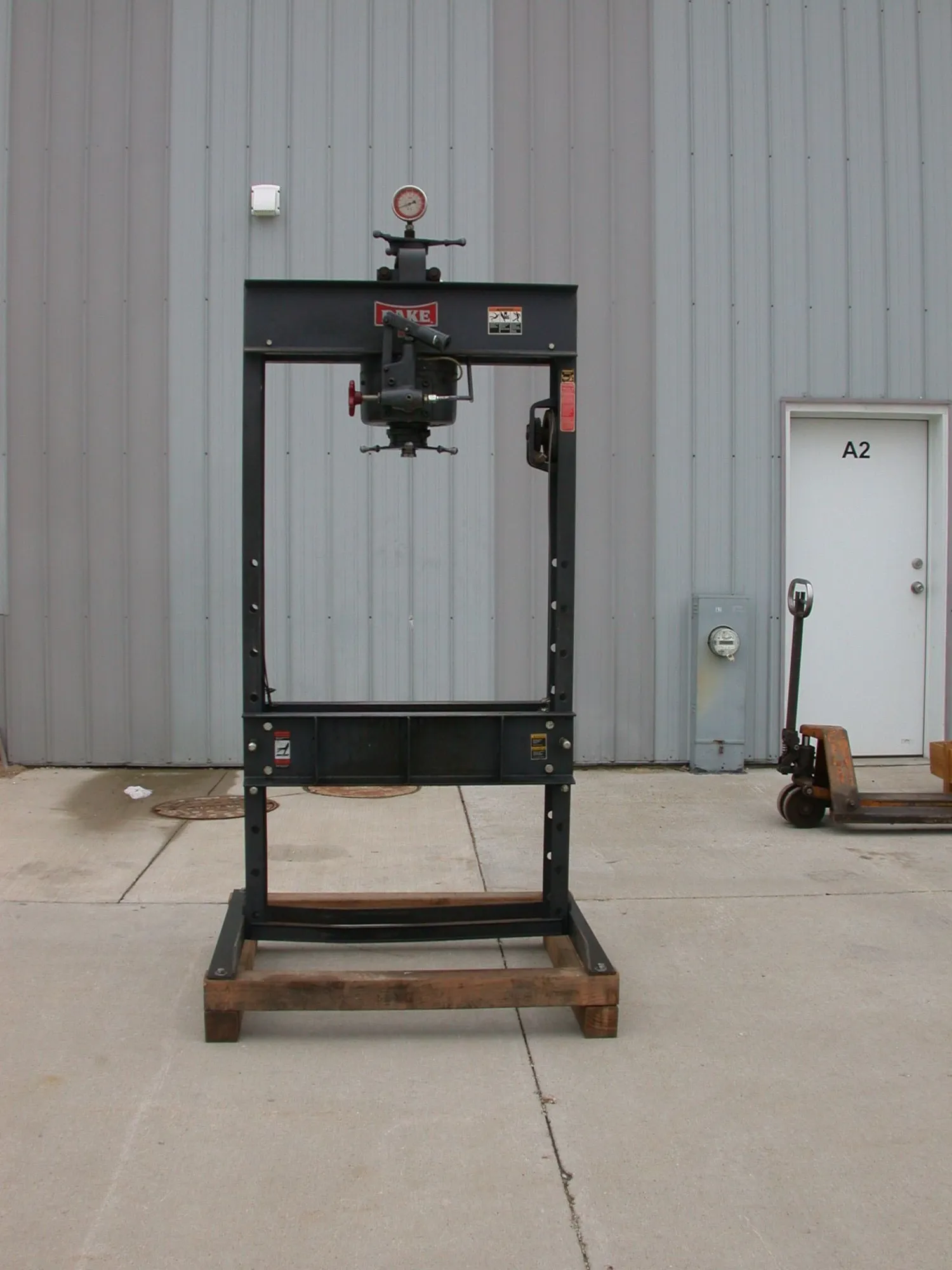

Preowned Dake Manually Operated H-Frame Hydraulic Press
Capacity - 50 Tons
Ram travel: 4"
Screw travel: 7"
Distance between uprights: 32-3/4"
Horizontal work-head travel: 20-3/4"
Width between table channels: 7-1/4"
Table channels
Width 7-1/4"
Height: 85"
Distance - table to ram:
5" min.
40" max.
Base: 45" L-R x 36" F-B
Net weight: 810 lbs.
