| Sheet-W | 59.05" | 1,499.9 mm |
| Sheet-L | 118.11" | 3,000 mm |
| Wattage | 2000 w | 2,000 W |
| IPM | 3937 ipm | |
| X | 59.05" | 1,499.9 mm |
| Y | 118.11" | 3,000 mm |
| Z | 7.87" | 199.9 mm |
| Control | CNC (Weihong) | CNC (Weihong) |
| Dimensions | 177" x 88" x 78" | 177" x 88" x 78" |
| Weight | 5291 lbs | 5291 lbs |

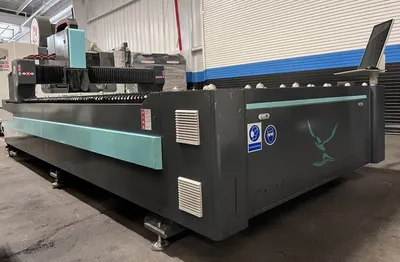

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Servo Motor and Driver
Sawteeth Working Table
Taiwan TBI Ball Screw, Germany Helical Rack and Pinion
Japan Shimpo Reducer
Travels:
X-Axis: 59.05″
Y-Axis: 118.11″
Z-Axis: 7.87″
Maximum Speed: 3937″ Per Min
Thickness Capacity:
Maximum Sheet Thickness (Carbon Steel): 0.629″
Maximum Sheet Thickness (Stainless steel): 0.236″
Maximum Sheet Thickness (Aluminum): 0.157″
General:
Laser Type: Fiber Laser
Laser Source Power: 2KW
Power: 440v / 60HZ / 3-Phase
Overall Dimensions: 177″ x 88″ x 78″ High
Weight: 5,291 lbs
Weihong Control System
59.05″ x 118.11″ Effective Cutting Range of Flat Plate
Raytools Fiber Laser Cutting Head
MP-2000 Industrial Chiller Unit
Raycus Fiber Laser Source
