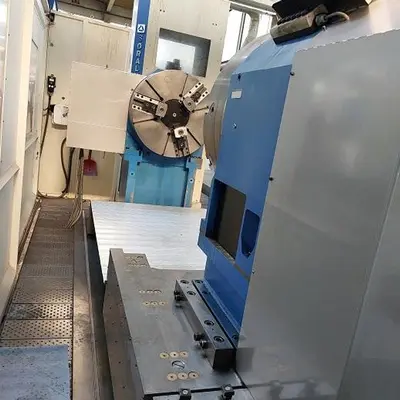

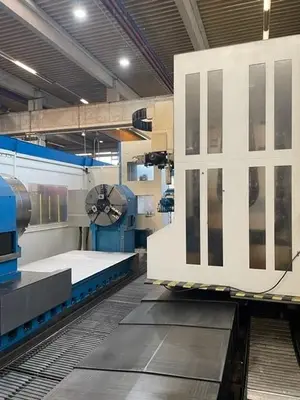

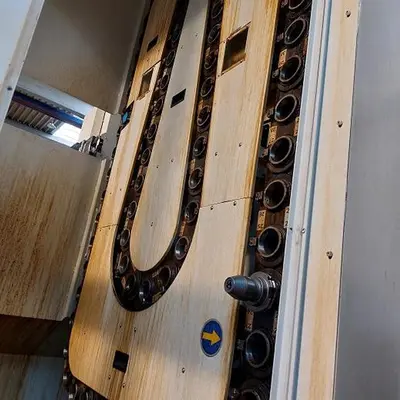

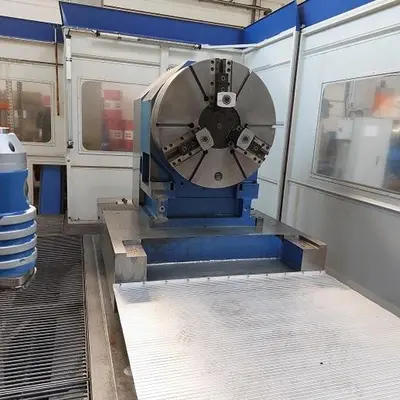

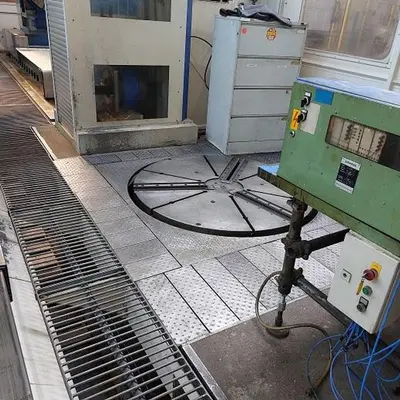

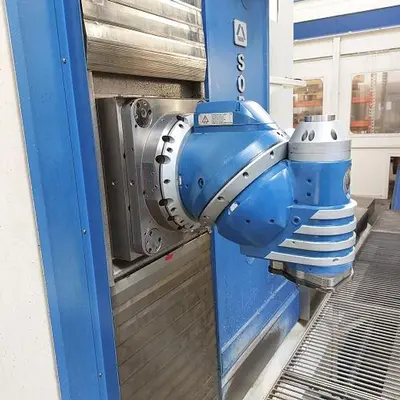

Siemens SINUMERIK 840D SL CNC ControlTurning Table for Turning & Milling Operations: Fibro carousel turntable - 1,600 mm Diameter TURNING: Max Speed 150 rpm Torque at 150 rpm - 2,000 Nm Workpiece Weight - 8,000 - 15,000 kg MILLING: Clamping - Hydraulic Max Workpiece Weight - 15,000 kg D'Andrea facing slide / grooves 22 H7 mm Speed range for D'Andrea facing slide: 1 - 315 rpm Max Torque 5,000 NmAutomatic Indexing Milling Head - 4,000 rpm - 32 kW - 900/1045 Nm - 60 bar A-Axis Indexing Accuracy - 0.001° - 360,000 Positions C-Axis Indexing Accuracy 0.001° - 360,000 Positions Stepless Adjustments in 2 Planes Milling Head can move to any 0.001° Position and Reaches 360,000 Positions per Swivel Plane Hirth Couplings with a 2.5° Pitch are Used - Adjusted by ServomotorsReversible clamp dimensions: H x W x U: 1100 x 900-3000 x 2200 mmH94D Automatic Head Changing System with Adapter Plate - 3 Milling Head PositionsTool holder ISO 50 / torque 900Nm / torque at 150 min-1: 2787 NmAir pressure 0.7 barCoolant System - External Cooling with outlet at Milling Head - 500 L Tank80 Position Tool MagazineTools + accessoriesAngleChip Conveyor3D Measuring ProbeClamping DeviceLongitudinally traveling operator platform with front sliding door and viewing windows as well as side railingsRack and Pinion Drive in X-Axis via 2 Servo Motos Controlled by Master Slave ProcessBall Screw in Y & Z AxisHeidenhein Direct Linear Measuring System in All AxesAutomatic Central Lubrication with Pressure & Time Monitoring for All Axes & Moving PartsControl Cabinet A/C UnitWork Area LightingRenishaw RMP60 M RMP60 Touch Probe System
Manufacturer: Soraluce
Model: FL 8000
Year: 2014
Condition: Used
Stock Number: 11189
Spindle speeds: 4,000 rpm
X axis travel: 8,000 mm
Y axis travel: 1,300 mm
Z axis travel: 2,700 mm
Spindle diameter: 90 mm
B axis: 360°
Turn table diameter: 1,600 mm
Turn table speed: 250 rpm
Tool taper: SK50 / Capto C8
Spindle motor: 43 kW
Machine weight: 37 Ton
Machine dimensions: 15 x 6 x 3.8 m
