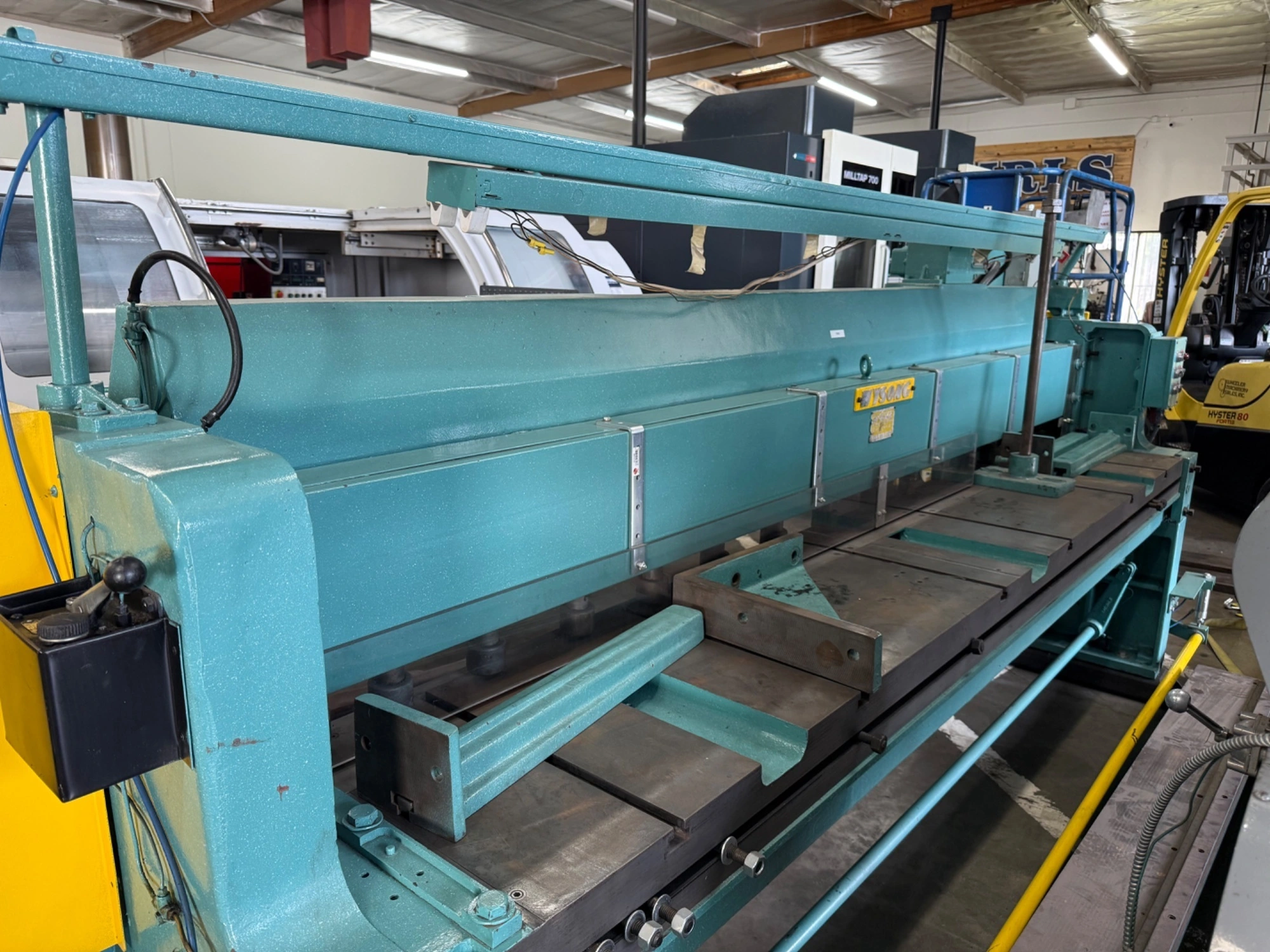

WYSONG 1010-RD power squaring shear, 10-gauge capacity, 122" blade, 24" back gauge, 7.5 hp motor. Ideal for precision cutting tasks. Used, in a condition suitable for immediate use in demanding environments.
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 122" | 3,098.8 mm |
| Back Gauge | 24" | 609.6 mm |
| Power | 7.5 hp | 5.6 kW |
Wysong 1010-RD Mechanical Power Squaring Shear #7655 #2
SPECIFICATIONS:
Cutting Length: 120″ (10′)
Shearing Capacity: 10 Gauge Mild Steel, Aluminum: .125″
Stainless Steel: .090″
Rake, Taper Per Foot: 3/8″
Strokes Per Minute: 60 SPM
Motor: 5 HP
Electrics: 220V/440V, 3-Phase
Dimensions: 168″ x 90″ x 72″ H
Weight: approx. 11,500 Lbs.
EQUIPPED WITH:
Front Operated Power Back Gauge
Squaring Arm
(2) Support Arms
