USED 2021 AMADA VT3850S

Amada VT3850S (3801-PC60 Marvel) 15" x 20" Tilt Frame Vertical Bandsaw, Automatic Shuttle, Tilt to 60 degrees, Cant head, Second Vise, Hydraulic Hold-down, 2021

Amada VT3850S (380A-PC60) Tilt Frame Automatic Vertical Bandsaw
Manufactured 2021

Cutting Capacity
Round 15″
Round 3° Cant 14.5″
Round at 45° right 14″
Round at 45° left 13.25″
Round at 45° right 3° Cant 13.5″
Round at 45° left 3° Cant 12.75″
Round at 60° right 9.25″
Round at 60° left 8″
Round at 60° right 3° Cant 8.75″
Round at 60° left 3° Cant 7.75″
Rectangle (W x H) 15″ x 20″
Rectangle at 3° Cant (W x H) 14.5″ x 20″
Rectangle at 45° right (W x H) 15″ x 14″
Rectangle at 45° left (W x H) 15″ x 13.25″
Rectangle at 45° right 3° Cant (W x H) 14.5″ x 13.5″
Rectangle at 45° left 3° Cant (W x H) 14″ x 12.75″
Rectangle at 60° right (W x H) 15″ x 9.25″
Rectangle at 60° left (W x H) 15″ x 8″
Rectangle at 60° right 3° Cant (W x H) 14.5″ x 8.75″
Rectangle at 60° left 3° Cant (W x H) 14.5″ x 7.75″

Maximum vise opening 15.25″
Work load capacity 1,000 lbs
Blade size (L x T x W) 16′ x 0.042″ x 1-1/4″
Blade speed 60-400 FPM
Blade Tension control Hydraulic
Cutting control Direct Force Sensing
Blade feed force 0 to 300 lbs
Saw blade motor 5 HP
Hydraulic pump motor 2 HP
Coolant pump motor 1/4 HP
Coolant Tank capacity 26 gal
Shuttle vise: AC Servo Motor with Double Ball Screw
Feed stroke 48″
Shuttle speed Up to 60 ft/min

PC3 Programmable Logic Control:
• 9” Color touch screen control
• Graphical part programming and user friendly interface
• Memory for up to 500 jobs and parts
• A customizable selection chart & material library
• Blade speed, feed pressure and feed rate are automatically set either by material type or pre-programmed jobs
Approx Machine dimensions (W x L x H) 158.3″ x 111.8″ x 93.7″
(Without Conveyor)
Table Height (Above Floor) 40″
Machine Weight 5,900 lbs

Equipped With:
-Touch screen control
-Hydraulically controlled blade tension
-Automatic sensor for jammed blade protection
-60° mitering left and right
-Direct Force Sensing Electric Feed for more consistent feed force with greater control
-Inverter blade drive with vector control
- The vises (2) two stage half stroking. The vise jaws easily repositioned on the clamping cylinder to cover a range of either 15″ – 7 1/2″ or 8 1/2″ to 0.5″
-Adjustable cant from 0 to 3 degrees
-Power Tilt

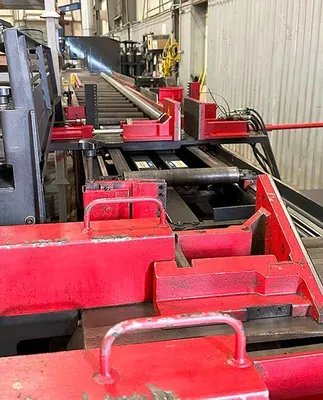

-48” Servo Bar feed with bullet nose cutting - Allows automatic cutting of multiple angles on the end of an incoming work piece. The desired angles are easily programmed into the Amada MarvelPC3S control graphical interface. Following the initial cut in a multi-angle program, the bar feed table automatically advances the work piece far enough to clear the cutoff piece from the work area. It then repositions the work piece as required for the subsequent cuts. The ability to program and run parts of this type automatically saves time by eliminating the need for additional handling and secondary set ups.
-Powered Scrapper type Chip Conveyor
-Mist lubrification
-Hydraulic Hold-down
-Second complete vise
-Work Lift roller on entry side of machine
-Roller tables 28” Wide X 43” Height
-Wash down hose

Location: St. Louis Area
