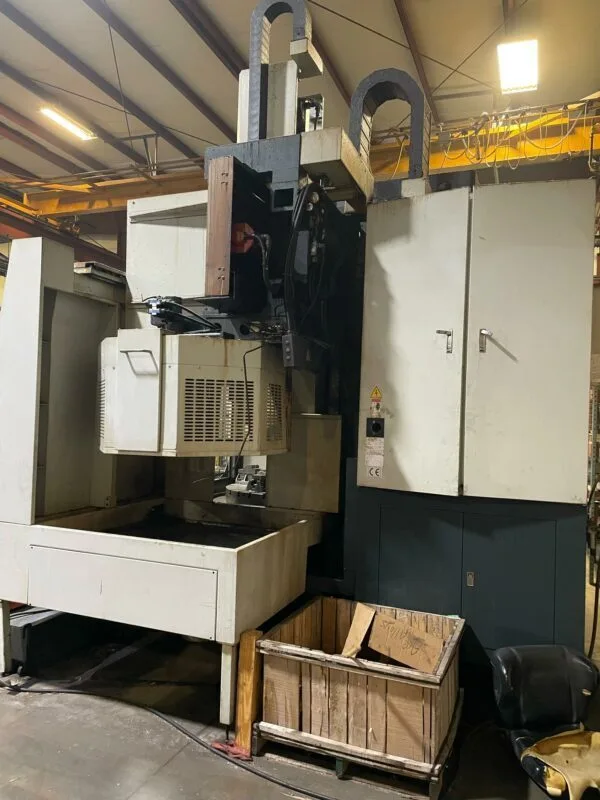

YOUJI 1000ATC CNC VTL, 2009, under power and ready for action. Featuring a 39.37″ table, max swing of 53.14″, and a cutting height of 35.43″. Equipped with Fanuc Oi-TD control, 12-station ATC, and hydraulic chuck.
Table Diameter 39.37″
Maximum Swing 53.14″
Maximum Cutting Diameter 43.30″
Maximum Cutting Height 35.43″
Rail Travel 20″
Ram Stroke, Z-Axis 31.49″
Table Weight Capacity 8,800 Lbs
Table Speed, 2-Ranges 1-600 RPM
Cutting Feed Rate 0.39-78.7 IPM
Automatic Tool Changer 12 ATC
Tool Shank BT-50 7/24
Main Table Motor (220 Volt) 49 HP/60 HP
Machine Weight 64,200 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Fanuc Oi-TD CNC Control
12-Station Automatic Tool Changer
39.37″ 4-Jaw Hydraulic Independent Chuck
Ram w/ 12-Position Automatic Tool Changer
Chip Conveyor
Misc. Tooling
60 HP Table Drive Motor
