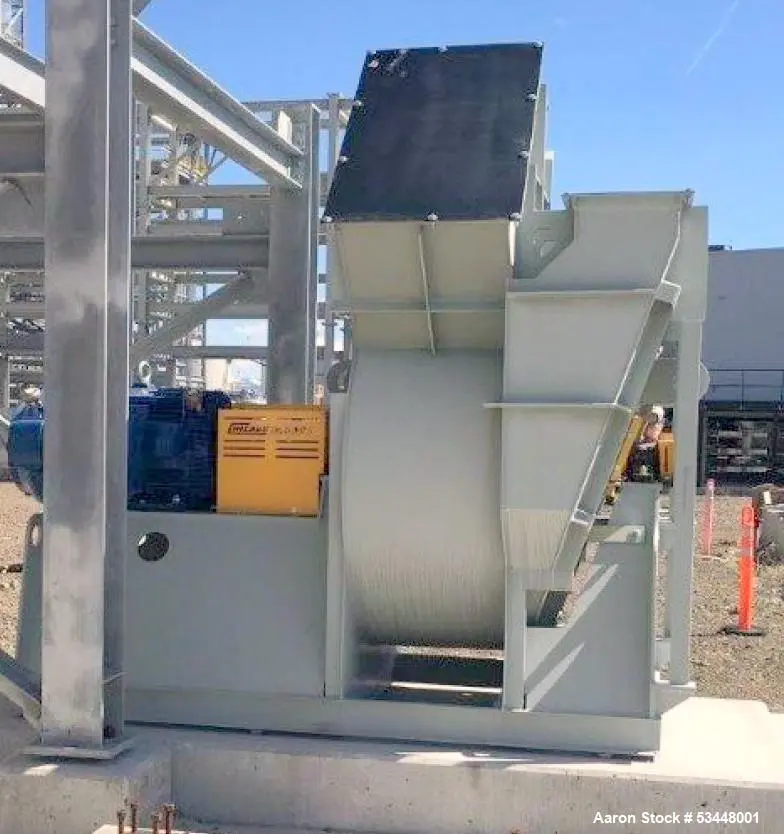

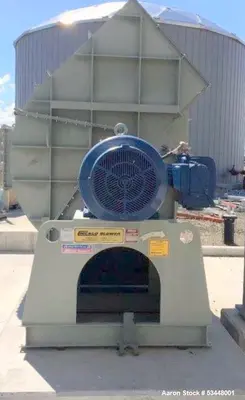

Used Chicago Blower Recycle Heater FD Fan (200-KB-101). Includes: FAN; 4014D/1904, Heavy Duty, airfoil blade wheel, Arr 7Si, with inlet box at 0 position, TH or BH discharge, CW rotation, 110% width. MOTOR; 150 HP, 1800 RPM, 447T frame, TEFC, 460,3,60 Hz - variable torque, IEEE-841. Insulated DE and NDE bearing, 120V space heater winding RTD's (2/Phase) and Bearing RTD's in common JB. SILENCER; Aeroacoustic SilentFlow Model IB, Vertical, lifting lugs, inlet screen, rainhood, and velocity tube. ADDED; Vibration Probe/Switch, Metrix Model ST5491E-021-002-00 -LCD INDICATOR, LOOP POWERED -4-20 mA OUTPUT PROPORTIONAL TO VELOCITY -INTERFACES W/ PLC, DCS & 4-20mA MONITORS -1 IPS FULL SCALE RANGE -1/4" NPT MOUNTING STUD -CSA/NRTL/C FOR CLASS I, DIV 1, GRPS C-D AND CLASS II, DIV 1, GRPS E-G -4-20MA FLYING LEADS CONNECTION -STANDARD HIGH(1500HZ), LOW(2HZ) FILTERS, (2) 1-1/2" 300# plugged TW connections to the inlet silencer. Built 2020.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Manufacturer: Chicago Blower
Model: 200-KB-101
Condition: Used
Year Built: 2020
Manufacturing Data:
Fan Specifications:
Model: 4014D/1904
Type: Heavy-Duty Airfoil Blade Wheel
Arrangement: 7Si
Inlet Box Position: 0
Discharge Type: TH (Top Horizontal) or BH (Bottom Horizontal)
Rotation: CW (Clockwise)
Width: 110%
Motor Specifications:
Power: 150 HP
Speed: 1800 RPM
Frame: 447T
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Voltage: 460V, 3-Phase, 60 Hz
Torque Type: Variable Torque
Standard Compliance: IEEE-841
Bearings:
Insulated DE (Drive End) & NDE (Non-Drive End) Bearings
Space Heater: 120V Space Heater Winding RTD’s (2/Phase)
Bearing RTD’s: Integrated in Common JB
Silencer Specifications:
Model: Aeroacoustic SilentFlow Model IB
Design: Vertical with lifting lugs
Additional Features:
Inlet screen
Rainhood
Velocity tube
Inlet Silencer Connections: (2) 1-1/2" 300# plugged TW connections
Added Components:
Vibration Probe/Switch:
Model: Metrix ST5491E-021-002-00
LCD Indicator: Yes
Loop Powered Output: 4-20 mA, Proportional to Velocity
Interface: Compatible with PLC, DCS, & 4-20mA Monitors
Measurement Range: 1 IPS Full Scale
Mounting: 1/4" NPT Stud
Certifications: CSA/NRTL/C for Class I, Div 1, Groups C-D and Class II, Div 1, Groups E-G
Filter Range: High (1500 Hz), Low (2 Hz)
Description:
The Chicago Blower Recycle Heater FD Fan (Model 200-KB-101) is a high-performance, heavy-duty industrial fan system designed for airflow control, ventilation, and process heating applications. Equipped with a 150 HP, 1800 RPM TEFC motor, this unit delivers high-efficiency airflow with a variable torque drive.
The system includes an Aeroacoustic SilentFlow Model IB silencer with a rainhood, inlet screen, and velocity tube, ensuring optimal noise reduction and efficiency. Additionally, the Metrix vibration probe/switch provides real-time monitoring and safety compliance, making this fan suitable for industrial environments requiring precise airflow control and vibration monitoring.
Built in 2020, this high-capacity blower fan is an excellent solution for manufacturing plants, refineries, and process heating operations.
Specifications:
Fan Type: Heavy-duty, airfoil blade wheel
Motor: 150 HP, 1800 RPM, 460V, 3-Phase, 60 Hz
Frame Size: 447T
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Silencer Model: Aeroacoustic SilentFlow IB
Additional Monitoring: Metrix Vibration Probe/Switch (ST5491E-021-002-00)
Certifications: CSA/NRTL/C, Class I, Div 1, Groups C-D, Class II, Div 1, Groups E-G
Year Built: 2020
Applications:
Industrial ventilation and process heating
Combustion air supply for boilers and furnaces
Refinery and chemical plant operations
Airflow control in large-scale manufacturing plants
Dust and fume extraction systems
Potential Uses:
Boiler and furnace combustion air supply
Industrial drying and heat treatment systems
High-capacity airflow applications in power plants
Process heating and cooling applications in industrial environments
Air circulation for large-scale manufacturing facilities
