Used Sharpsville 2,000 Gallon Reactor (V710), 316L Stainless Steel, Vertical. 78" OD x 78" Straight side. Dished top and bottom. Internal rated 25psi/FV at 200 degrees F. Sidewall jacket rated 50psi at 150 degrees F. Openings top: 24" manway, 12" center, 6", 4", (2) 3", (7) 2". 4" Center bottom outlet. 304 Stainless steel shroud with 12" annulus filler with chloride free insulation. Mounted on (4) stainless steel legs. Serial# 9233, National Board# 8233, Built 2016. Including Circulation system and APV Pump.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Brand: Sharpsville Container
Capacity: 2,000 Gallons
Material: 316L Stainless Steel (Reactor), 304 Stainless Steel (Shroud)
Year Built: 2016
Serial #: 9233
National Board #: 8233
Description:
This used Sharpsville Container 2,000-gallon vertical reactor (Model V700) is a high-quality processing vessel, designed for chemical, pharmaceutical, and food production applications. Constructed from 316L stainless steel, it ensures corrosion resistance and durability in demanding industrial environments.
The reactor features a dished top and bottom, with an internal rating of 25 PSI/FV at 200°F and a sidewall jacket rated for 50 PSI at 150°F, providing precise temperature control. The top head includes multiple access points, including a 24” manway, 12” center opening, and various inlet sizes (6”, 4”, (2) 3”, (7) 2”), ensuring flexibility for different processing needs. The 4” center bottom outlet allows for efficient discharge.
A 304 stainless steel shroud with a 12” annulus filler and chloride-free insulation enhances temperature stability. The reactor is mounted on four stainless steel legs for stability. This unit includes a circulation system with an APV pump, optimizing mixing and fluid movement within the system.
Specifications:
Capacity: 2,000 Gallons
Material: 316L Stainless Steel (Reactor), 304 Stainless Steel (Shroud)
Tank Dimensions:
Outside Diameter: 78”
Straight Side Height: 78”
Top & Bottom: Dished
Pressure Ratings:
Internal: 25 PSI/FV @ 200°F
Sidewall Jacket: 50 PSI @ 150°F
Top Head Openings:
24” Manway
12” Center Opening
6”, 4”, (2) 3”, (7) 2” Inlets
Bottom Discharge:
4” Center Bottom Outlet
Insulation & Shroud:
304 Stainless Steel Shroud with 12” Annulus Filler
Chloride-Free Insulation
Mounting: 4 Stainless Steel Legs
Included Equipment:

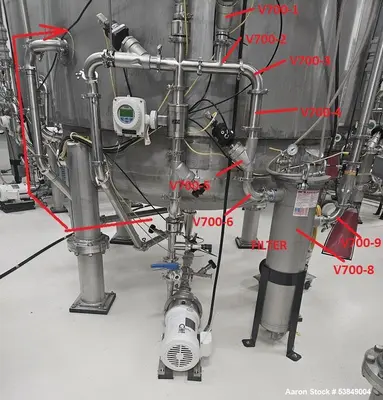

Circulation System
APV Pump
Applications:
Chemical Processing – Reactor for controlled chemical synthesis
Pharmaceutical & Biotech – Precision blending and reaction control
Food & Beverage Processing – Ingredient mixing, fermentation, and temperature-controlled processing
Cosmetics & Personal Care – Emulsification and formulation of skincare and beauty products
Petrochemical & Industrial – Heat and pressure-controlled mixing for specialized applications
Common Uses for This Reactor:
Controlled chemical reactions
Heat-sensitive ingredient processing
Pharmaceutical liquid and gel formulation
Food and beverage mixing and fermentation
Industrial liquid heating and circulation
